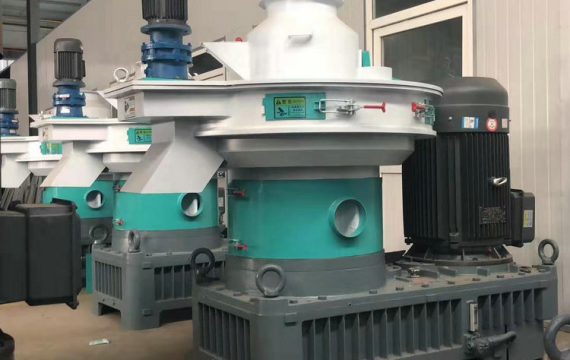

Vertical Ring Die Wood Pellet Mill
High-Efficiency Wood Pellet Machine & Industrial Biomass Pellet Making Machine for Mass Production
Wood Pellet Mill Overview

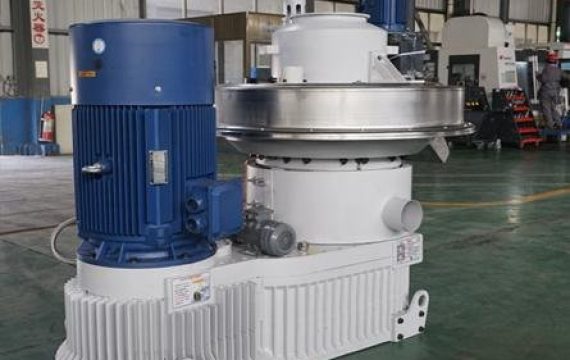

Our Vertical Ring Die Wood Pellet Mill (a core type of Ring Die Pellet Mill and professional wood pellet mill) is a key wood pellet production machine engineered for industrial and commercial wood pellet manufacturing. As a high-performance pelletizer and industrial wood pellet machine, it transforms various biomass materials—wood chips, sawdust, straw, and peanut shells—into uniform wood pellets (6–12mm adjustable) for use as clean fuel or raw materials in other sectors. This versatile equipment also serves as a reliable commercial wood pellet mill, boasting stable performance and high production efficiency, making it a staple in biomass power plants, wood processing factories, and pellet production workshops.
Vertical Ring Die Wood Pellet Mill Technical Parameters
| Modle | Power (kw) | Capacity (t/h） | Output size（mm) | Machine Size (m) |
|---|---|---|---|---|
| HXVRP-560 | 90 | 1-1.5 | 212 | 2.6×1.3×2.35 |
| HXVRP-680 | 160 | 1.5-2.5 | 2-12 | 3.3×1.5×2.3 |
| HXVRP-850 | 220 | 2.5- 3.5 | 2-12 | 3.8×1.83×3.08 |
Note. The data in the table is for reference only. Please consult our company for details
Vertical Ring Die Pellet Machine Core Components
Pressure Roller
The raw materials are squeezed into the ring die hole for molding, which affects the pelletizing efficiency and energy consumption.
Ring Die
The ring die directly determines the particle size (the aperture determines the particle diameter), density and forming rate.

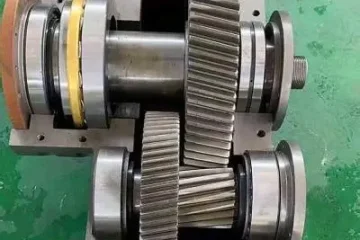

Gearbox
The transmission efficiency and load-bearing capacity of the reducer affect the loss rate of power transmission and the stability of granulation.
Pure Copper otor
The performance of the motor determines the power output stability and energy consumption of the equipment.
How Wood Pellets Are Made?

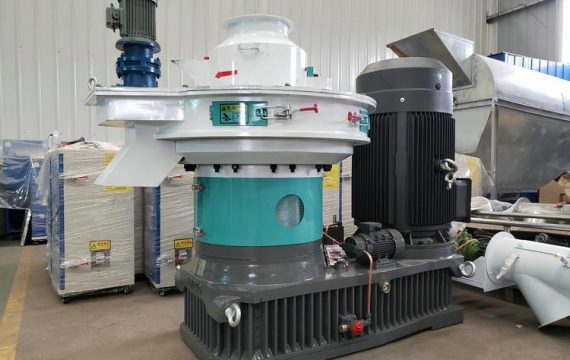

The core of this wood pellet mill lies in its vertical ring die structure, embodying the working mechanism of a top-tier pellet press:
- Feeding: Raw materials are fed into the feeding chamber via an automatic conveyor, ensuring a steady supply for continuous wood pellet production.
- Modulation: The materials are preheated and humidified to the optimal condition (moisture 10–15%) to enhance pellet forming rate, a key step for high-quality wood pelleting.
- Pressing & Forming: Inside the machine, the high-speed rotating ring die and pressure rollers work together to extrude the materials through the die holes.The extruded materials are cut into uniform pellets by a fixed cutter, realizing the core function of wood pellet pressing equipment.
- Cooling & Discharging: The hot pellets are discharged to a cooling machine for rapid cooling and screening, ensuring the pellets’ hardness and durability before final packaging.
Why Choose Our Vertical Ring Die Wood Pellet Mill？
As a professional industrial wood pellet machine, its vertical ring die design and high-power motor enable a processing capacity of up to 6 tons per hour, far exceeding traditional pellet mills, perfectly suited for large-scale wood pellet manufacturing.
The precision-machined pellet mill die ensures uniform pellet size and high density (1.1–1.3 g/cm³), making the pellets suitable for long-distance transportation and stable combustion as pellet fuel.
This biomass pellet making machine can handle not only wood-based materials but also various agricultural residues, adapting to diverse biomass pellet production needs.
The ring die and pressure rollers are made of high-chromium alloy steel, ensuring wear resistance and a long service life (8000+ hours of continuous operation), reducing maintenance costs for the equipment.
Equipped with an energy-efficient motor and optimized transmission system, the machine reduces power consumption by 15–20% compared to similar products. It also supports the production of clean biomass fuel, contributing to environmental protection.
The integrated PLC control system simplifies operation, while the modular design allows for quick replacement of wearing parts (such as the pellet machine die), minimizing downtime.
What Finished Products can be Produced?
Main Application Scenarios
1. Biomass Energy Production
As a key pellet fuel maker, the machine produces high-quality wood pellets for biomass power plants, industrial boilers, and household heating, replacing traditional fossil fuels to reduce carbon emissions.
2. Wood Processing Industry
The wood pellet machine converts wood processing waste (such as sawdust and wood chips) into valuable pellets, realizing resource reuse and increasing additional income for enterprises.
3. Animal Husbandry
The pellets can also be used as feed carriers for livestock and poultry, with uniform particle size and good palatability, expanding the application scope of this commercial wood pellet mill.
4. Export Trade
With the growing global demand for clean energy, the wood pellets produced by this machine are widely exported to Europe, North America, and Southeast Asia, making it a popular wood pellet mill for sale in international markets.
Customer Site Footage
Hot Market Vertical Ring Die Wood Pellet Mill for Sale
- Europe: High demand for wood pellet mill due to strict environmental policies and the popularity of biomass heating systems. The commercial wood pellet machine is particularly sought-after for small and medium-sized pellet production workshops.
- North America: Strong interest in industrial wood pellet machine to support the booming biomass power industry, with a growing need for high-capacity Ring Die Pellet Mill models.
- Southeast Asia: Growing adoption of wood pellet mill for agricultural waste recycling and biomass energy projects, driving demand for cost-effective and durable biomass pellet making machine models.
Customer Application Cases
A Biomass Power Plant in Germany
Adopted our 5-ton/hour Vertical Ring Die Wood Pellet Mill to produce wood pellets for boiler combustion. The machine operates 24 hours a day, reducing the plant’s coal consumption by 40% and meeting local carbon emission reduction standards.
A Wood Processing Factory in Canada
Deployed our wood pellet machine to convert sawdust waste into 8mm wood pellets. The pellets are sold to local households as heating fuel, generating an additional monthly income of $30,000 for the factory.
A Pellet Production in Indonesia
Used our commercial wood pellet mill to process coconut shell waste into high-density pellets for export. The stable performance of the machine ensures a 98% pellet forming rate, helping the workshop secure long-term export contracts.
FAQ for Vertical Ring Die Wood Pellet Mill
Yes – change the ring die to make 6mm, 8mm, 10mm or 12mm pellets (e.g. 6mm for feed, 10mm for biomass fuel).
As an industrial wood pellet machine, it has a processing capacity of 1–10 tons per hour, which can be customized according to your specific production needs.
The optimal moisture content of raw materials is 10–15%. If the moisture content is too high, a dryer needs to be matched to ensure the pellet forming rate—this is a common requirement for wood pellet production machine operation
Yes, we offer small models (1–2 tons/hour) that are compact and cost-effective, ideal for small workshops or startups needing a reliable wood pellet machine.
With proper maintenance, the ring die can last 8000+ hours. The replacement cycle also depends on the hardness of the processed materials—harder materials may require more frequent replacement.
Absolutely. We offer a 1-year warranty, free on-site installation and training, and fast delivery of spare parts (such as ring dies and pressure rollers) to ensure smooth operation of your equipment.
Buyer's Guide
How to Choose the Right Wood Pellet Mill？
1. Define Production Needs
Determine the appropriate model based on your daily output requirements (small: 1–2 tons/hour; large: 5–10 tons/hour) to select a suitable wood pellet mill that matches your production scale.
2. Consider Material Characteristics
If processing hard wood materials, choose a model with a high-wear pellet machine die and powerful motor to ensure efficient production.
3. Focus on Core Configurations
Prioritize equipment with a precision-machined ring die, energy-saving motor, and PLC control system—key components that determine the performance of a Ring Die Pellet Mill.
4. Confirm Application Scenarios
For commercial sales of pellets, choose a commercial wood pellet mill with stable pellet quality; for industrial use, opt for an industrial wood pellet machine with high capacity and durability.
5. Check After-Sales Support
Select suppliers (like Huaxin) offering comprehensive after-sales services, including warranty, technical training, and spare parts supply, to avoid operational risks for your wood pellet production machine.
Get Your Customized Wood Pellet Mill Solution
With 12 years of experience manufacturing Vertical Ring Die Wood Pellet Mill (professional wood pellet machine and Ring Die Pellet Mill), we understand the unique needs of different industries. Whether you need a small commercial wood pellet mill for a local workshop or a large industrial wood pellet machine for a biomass power plant, we’ll tailor the equipment to your material type and production requirements.
Contact us today to get:
- Free capacity calculation (tell us your daily material volume and desired pellet size—we’ll recommend the perfect wood pellet mill model).
- Custom videos of our wood pellet machine processing your specific material (e.g., sawdust, straw, coconut shells).
- A transparent quote (no hidden fees—includes the machine, spare pellet mill die, installation, and training).
We not only sell high-quality vertical ring die wood pellet machines, biomass pellet making machines, and wood pellet production equipment, but we also help you convert biomass waste into high-value wood pellets. Let us start your profitable pellet production journey!
