Industrial Hot Air Furnace
Industrial hot air systems for drying and heating solutions
Industrial Hot Air Furnace Overview
Our Industrial Hot Air Furnace is the core heat source of industrial drying systems, generating stable hot air at 120–600℃. It serves as a dedicated heat supply equipment for rotary drum dryers (300–600℃ hot air for bulk materials like sawdust and sludge) and flash dryers (120–350℃ clean air via heat exchanger for heat-sensitive powders). Fuel-flexible (compatible with biomass pellets, natural gas, coal, and diesel), it features energy-saving design, PLC control, and low-NOₓ emissions—meeting EU, China, and North American environmental standards. Ideal for chemical industry drying, food processing, and biomass production lines.
Technical Parameters of Industrial Hot Air Furnace
| Model | Heat Output (10^4kcal/h) | Air Temperature | Rated Fuel Consumption | Power |
|---|---|---|---|---|
| HXHA-60 | 30~60 | 60~550°C | 100 kg/h | 7.5 kW |
| HXHA-80 | 40~80 | 60~550°C | 120 kg/h | 7.5 kW |
| HXHA-100 | 40~100 | 60~550°C | 150 kg/h | 11.0 kW |
| HXHA-120 | 60~120 | 60~550°C | 200 kg/h | 15.0 kW |
| HXHA-150 | 80~150 | 60~550°C | 250 kg/h | 18.5 kW |
| HXHA-180 | 80~180 | 60~550°C | 250 kg/h | 22.0 kW |
| HXHA-220 | 100~220 | 60~550°C | 300 kg/h | 22.0 kW |
| HXHA-300 | 200~300 | 60~550°C | 450 kg/h | 30.0 kW |
| HXHA-360 | 200~360 | 60~550°C | 500 kg/h | 45.0 kW |
| HXHA-400 | 200~400 | 100~550°C | 600 kg/h | 55.0 kW |
| HXHA-600 | 300~600 | 100~550°C | 900 kg/h | 75.0 kW |
Note. The data in the table is for reference only. Please consult our company for details

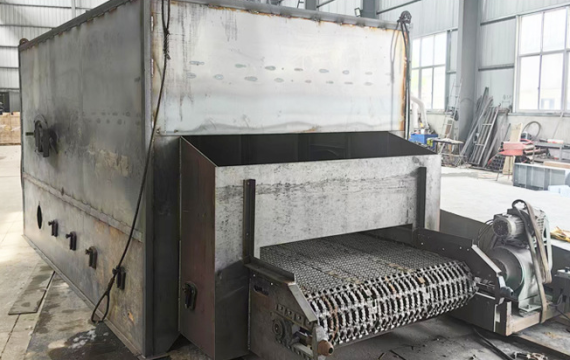

Core Components of Industrial Hot Air Furnace
The furnace’s reliable performance relies on 6 specialized components, optimized for industrial stability and efficiency:
Made of 310S stainless steel (for gas) or refractory brick (for coal/biomass), it withstands 800–1200℃ flames. Low-NOₓ models adopt staged combustion technology to reduce nitrogen oxide output. Fuel-flexible by design: compatible with gas burners, coal grates, or biomass pellet screw feeders.
- Direct-fired: Hot flue gas mixes directly with air—ideal for minerals and sludge (perfect for rotary dryer heating).
Indirect-fired: Finned tubes separate flue gas from air, - producing clean hot air for food or chemicals—suitable for flash dryer heat supply to avoid powder contamination.
Equipped with PLC automatic control, it adjusts fuel flow and fan speed to maintain temperature stability (±3℃ fluctuation). IoT-connected models support remote monitoring of temperature, fuel consumption, and faults via mobile devices—ideal for 24/7 production lines.
Comes with a cyclone dust collector (captures 95% of large particles) and optional bag filter (traps 99.9% of fine dust). This integrated design keeps workshops clean and protects dried products from contamination.
Wrapped in 100mm-thick high-alumina insulation (heat loss ≤5%), with a waste heat recovery unit that preheats cold air using flue gas. This design reduces fuel consumption by 15–25% compared to traditional uninsulated furnaces.
Built-in safeguards include over-temperature shutdown (triggers at 650℃), flame-out alarms (UV sensors detect extinguished flames), and gas leak detectors (for gas-fired models). Automatically cuts off fuel in case of malfunctions—protecting equipment and personnel.
Working Principle of Industrial Hot Air Furnace
Industrial hot air furnaces deliver high-temperature air for drying and calcining through four sequential steps:
- Fuel Combustion: Fuels (natural gas, coal, biomass pellets) are fed into the combustion chamber, mixing with preheated air for complete combustion—generating 800–1200℃ high-temperature flue gas.
- Heat Transfer: Hot flue gas flows through a heat exchanger (finned tube bundle), transferring heat to ambient air drawn in by a blower—ensuring process air is free of flue gas residues.
- Air Heating: Ambient air absorbs heat to reach the target temperature (120–600℃, adjustable by process needs), then is routed via ducts to industrial equipment (drying chambers, rotary kilns).
- Flue Gas Treatment: Cooled flue gas passes through a particulate collector and desulfurization system for purification, meeting emission standards before discharge.
Why Choose Our Industrial Hot Air Furnace?
Energy-saving design reduces fuel use by 15–25% vs. traditional models. A 1,000,000 kcal/h gas-fired unit saves 15–20 cubic meters of natural gas per hour—totaling $18,000–$24,000 in annual savings (8h/day, 300 days/year).
PLC control maintains temperature stability (±3℃), avoiding over-dried or under-dried batches. For example, it can dry apple slices at 60±1℃ in food processing, preserving flavor and texture.
Swaps fuels based on local costs (gas in Europe, coal in resource-rich regions, biomass in agricultural areas). Modular design supports variable demand—run 1 unit for small batches, 2 for peak production.
Simple upkeep: empty the cyclone weekly, lubricate fans monthly, and inspect the heat exchanger yearly. With basic care, it has an 8–10 year service life.
Main Application Scenarios
1. Biomass Processing
Uses biomass pellets as fuel to generate 180–300℃ air for drying straw before briquetting—creating a closed loop (biomass waste → fuel → drying → biomass products) to cut costs.
2. Sludge Treatment
Supplies 250–400℃ indirect-fired air for municipal sludge drying (moisture 80% → 15%). Dried sludge is incinerated or converted into building materials, reducing waste volume by 70%.
3. Mineral Processing
Delivers 300–600℃ direct-fired air for drying limestone and iron ore concentrate—cutting drying time by 30% and keeping workshops dust-free via integrated dust collection.
4. Chemical Industry
Provides 150–300℃ clean air for drying PVC resin and pharmaceutical intermediates—meeting GMP standards with contamination-free hot air.
Customer Site Footage
Hot Market Industrial Hot Air Furnace for Sale
- Europe (Germany, France): High demand for low-emission, clean hot air furnaces for pharmaceutical and food processing, favoring gas-fired and biomass models.
- Southeast Asia (Indonesia, Thailand): Abundant biomass resources drive sales of 500,000–1,200,000 kcal/h biomass-fired models for palm oil mill drying.
- China: Industrial parks adopt high-heat-load (1,500,000–3,000,000 kcal/h) units for sludge treatment and mineral processing, aligned with carbon reduction policies.
- North America (USA, Canada): Agricultural regions use biomass-fired hot air furnaces for crop drying, replacing fossil fuels.
Industrial hot blast furnace application cases
Chinese Biomass Briquette Plant
Uses a 1,100,000 kcal/h biomass direct-fired hot air furnace (fuel: palm waste) + vibrating fluidized bed dryer to dry palm shells from 40% to 14% moisture. Replaced coal furnaces, saving $25,000/year, with pellets meeting Malaysia’s MS 1900:2015 (99% qualification rate).
Chinese Sawdust Carbonization Plant
Operates two 1,300,000 kcal/h biomass pellet hot air furnaces + continuous carbonization furnace to dry fir sawdust to 8% moisture. Swapped diesel heaters, saving $40,000/year, cutting CO₂ by 3,000 tons/year, and increasing charcoal yield by 10%.
Polish Pine Sawdust Briquetting Plant
Adopts an 850,000 kcal/h low-NOₓ gas-fired hot air furnace + rotary drum dryer to dry pine sawdust from 38% to 15% moisture. Reduced energy costs by $18,000/year, lowered briquette breakage to 3%, and met EU EN 14961 for exports.
FAQ for Industrial Hot Blast Furnaces
Direct-fired: High thermal efficiency, hot air mixes with flue gas—suitable for non-sensitive materials (wood, slag). Indirect-fired: Clean hot air via heat exchanger—must-have for food, pharmaceuticals, and chemicals.
Yes. Customized high-temperature solutions include 310S stainless steel chambers, optimized heat exchangers, and over-temperature protection (shuts off at 650℃).
Dependent on local fuel prices. Gas is low-maintenance but costly in rural areas; biomass saves 30–40% on fuel if sawdust/rice husk is accessible.
Calculate heat load: (Material weight/h × moisture removed × 540 kcal/kg) ÷ dryer efficiency (60–75%). Add 10–20% redundancy (e.g., 1,200,000 kcal/h furnace for 1,000,000 kcal/h dryer demand).
Check stable fuel supply (unclog feeders), normal fan airflow, and functional PLC/sensors. Calibrate sensors or adjust air-fuel ratio to fix issues.
ollow “ventilate first, ignite second, heat gradually”: Purge the furnace with a fan for 5–10 minutes, ignite per procedure, and raise temperature by 50–80℃/hour to protect the heat exchanger.
Incomplete combustion from unbalanced air-fuel ratio (insufficient air), wet biomass fuel (>20% moisture), or clogged burners. Adjust air dampers, use dry fuel, or clean nozzles.
Install a waste heat recovery device (cuts fuel use by 15–25%), use variable-frequency blowers/feeders, and regularly clean dust from the heat exchanger.
How to Buy the Best Industrial Hot Air Furnace？
Determine your dryer’s required heat and add 10–20% redundancy to avoid underpowering.
Gas-rich areas: gas-fired models (low maintenance); coal-heavy regions: coal-fired generators (low fuel cost); agricultural zones: biomass pellet-fired furnaces (eco-friendly).
Select energy-saving models (thermal efficiency ≥85%) with waste heat recovery. For strict regions, opt for low-NOₓ (≤150mg/m³) and dust-collector integrated systems.
Small teams: PLC-controlled (auto-adjusts temperatures); large lines: IoT-connected (remote monitoring + data logs).
Fluctuating demand: modular systems (add units as needed); special needs: customized solutions (high temperature, food-grade parts).
Choose manufacturers with 5+ years in drying systems, offering on-site installation, training, and global spare parts delivery (7–15 days).
Get Your Customized Industrial Hot Air Furnace Solution
With 12 years of experience manufacturing Industrial Hot Air Furnace, we understand the needs of feed, food, chemical, and biomass factories for reliable, energy-saving heating. Whether you need a small unit for 5t/day food drying or a large system for 30t/day biomass production, we’ll tailor it to your line.
Contact us today to get:
- Free heat demand calculation (share your material, output, and moisture target).
- Industry-specific operation videos (e.g., feed drying, starch processing).
- Transparent quote (no hidden fees—includes furnace, ducts, installation, and training).
We don’t just sell machines—we help you cut fuel costs, improve product quality, and keep your line running 24/7. Let’s get your heating solution started!
