Hydraulic Briquetting Machine
High-Pressure Equipment for Sawdust, Charcoal, Rice Husk Fuel Block Production
Hydraulic Briquetting Machine Overview
Our Hydraulic Briquetting Machine (a core type of Biomass Briquetting Machine) is an industrial-grade briquetting machine designed for high-pressure compaction of biomass and solid waste. it compresses sawdust, straw, Charcoal, and industrial solid waste into dense briquettes(hexagonal, cylindrical, and rectangular) . This versatile briquette maker leverages hydraulic drive for stable pressure output, making it ideal for large-scale waste recycling plants, biomass energy facilities, and industrial waste treatment workshops.
Hydraulic Briquetting Machine Technical Parameters
| Modle | Main Motor(kw) | Capacity (t/h) | Feed opening width (mm) | Output size(mm) |
|---|---|---|---|---|
| HXDC-600 | 37 | 4-5 | 600 | 5-50 |
| HXDC-800 | 55 | 5-8 | 800 | 5-50 |
| HXDC-1100 | 90 | 8-10 | 1100 | 5-50 |
| HXDC-1300 | 110 | 10-15 | 1300 | 5-50 |
| HXDC-1400 | 132 | 15-20 | 1400 | 5-50 |
| HXDC-1600 | 160 | 18-25 | 1600 | 5-50 |
Note. The data in the table is for reference only. Please consult our company for details
Hydraulic Briquetting Machine Core Components
Hydraulic Pump Station
Delivers stable high pressure (12–25MPa) for efficient press briquetting, serving as the machine’s core power source.
Briquetting Chamber
Equipped with a wear-resistant briquette molder (die) that determines briquette shape and density, crafted from high-strength alloy steel.
Pressure Plate & Push Rod
Transmits hydraulic force to compact materials, ensuring uniform density across all briquettes—critical for the briquette press machine’s performance.
What Are The Steps Involved In Briquetting?
This briquetting machine working principle centers on hydraulic-driven high-pressure compaction, embodying the core logic of industrial briquette press:
- Uniform Feeding: Pretreated raw materials (sawdust, straw, etc.) are fed into the briquetting chamber via a screw conveyor, ensuring steady input for continuous production.
- Hydraulic Compression: The hydraulic system drives the pressure plate to push materials forward, exerting 12–25MPa pressure to squeeze out air and bond particles—core to the hydraulic advantage.
- Molding & Holding: Materials are pressed into the briquette molder and held under high pressure to ensure cohesion, forming dense, durable briquettes (e.g., wood briquette, sawdust briquettes).
- Automatic Discharging: After molding, the hydraulic system retracts, and a push rod ejects finished briquettes, completing the briquetting process cycle.
Why Choose Our Hydraulic Briquetting Machine?
Hydraulic drive delivers stable, high pressure, producing briquettes with a density of 1.2–1.5g/cm³—ideal for long-distance transportation and industrial combustion.
As a versatile sawdust press and Straw briquetting machine, it handles charcoal powder, and rice husks biomass materials，and industrial solid waste，maximizing waste resource utilization.
Hydraulic system with variable frequency control reduces energy consumption by 10–15% compared to mechanical presses, supporting cost-effective large-scale biomass briquettes manufacturing process.
Hydraulic transmission ensures smooth operation with low vibration and noise, creating a better working environment for industrial workshops.
Modular design simplifies component replacement (e.g., briquette molder), and the PLC control system provides fault alarms for timely troubleshooting.

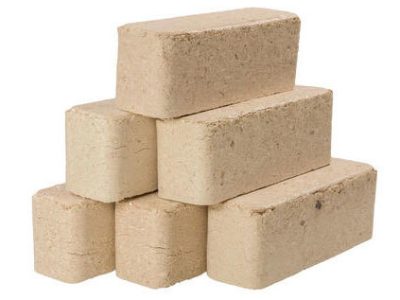

What Finished Products can be Processed?
Main Application Scenarios
1. Industrial Fuel Supply
Produces high-density biomass briquettes for industrial boilers, power plants, and cement factories, replacing coal to reduce carbon emissions.
2. Solid Waste Recycling
Charcoal powder is compressed into dense rectangular fuel briquettes, increasing charcoal utilization and reducing powder waste during transportation.
3. Biomass Energy Production
Supplies standardized briquettes for biomass pellet plants and regional heating stations, ensuring stable energy output.
3. Wood Processing Industry
Processes wood scraps and sawdust into wood briquette, realizing resource reuse and increasing additional income for wood factories.
Customer Site Footage
Hot Market Hydraulic Briquetting Machine for Sale
- China & Southeast Asia: High demand for Hydraulic Briquetting Machine driven by solid waste recycling policies and biomass energy development.
- Europe & North America: Industrial plants adopt it for waste reduction and carbon emission reduction, favoring the machine’s high efficiency and environmental friendliness.
- India & Brazil: Abundant agricultural waste resources boost adoption of this briquette press for sale as a cost-effective waste-to-energy solution.
Customer Application Cases
A Wood Processing Factory in China
Adopted our sawdust briquette press to convert wood scraps into high-density briquettes, cutting fuel costs by 35% for on-site production.
An Agricultural Cooperative in Indonesia
Used our biomass briquette machine to process rice straw into 60mm briquettes, selling to local brick factories for an annual profit of $120,000.
A Biomass Power Plant in Kenyan
Used our biomass briquette machine to process rice straw into 60mm briquettes, selling to local brick factories for an annual profit of $120,000.
FAQ Hydraulic Briquetting Machine
Its hydraulic drive delivers stable high pressure, ensuring higher briquette density and a forming rate of ≥95% compared to mechanical presses.
Yes. The molding size can be determined based on a custom mold, and fuel briquettes of various shapes and sizes, such as cylindrical, hexagonal, and rectangular, can be produced. The density of the briquettes can be controlled by adjusting the pressure in the hydraulic system to meet the density requirements of different users.
The optimal moisture content is 8–18%. Excess moisture may cause molding failure, so pre-drying is recommended for materials with high humidity.
If used and maintained properly, a hydraulic briquetting press can generally have a service life of 5-10 years or even longer. Regular maintenance and timely replacement of wearing parts can extend the equipment’s service life.
The operation of a briquetting press is relatively simple. However, to ensure normal operation and production safety, operators should ideally receive professional training and be familiar with the equipment’s operating procedures, maintenance points, and safety precautions.
Hydraulic briquetting machines generally do not require a special foundation for installation. Simply place the machine on a flat, solid surface, secure the anchor bolts, and it’s ready to go. In locations without a power source, a diesel engine can be used.
Buyer's Guide
How to Buy the Best Hydraulic Briquetting Machine？
1. Confirm Production Scale
Select models based on daily output needs (small: 1–2 tons/hour; large: 5–8 tons/hour) to match your briquetting production demands.
2. Check Hydraulic System Quality
Prioritize machines with high-pressure resistant hydraulic pumps and valves to ensure stable operation under long-term high load.
3. Consider Material Characteristics
For hard materials (wood chips), choose a model with a wear-resistant briquette molder; for soft materials (straw), focus on feeding system stability.
4. Focus on Energy Efficiency
Opt for machines with variable frequency control to reduce energy consumption, lowering long-term operational costs.
5. Verify After-Sales Support
Select suppliers (like Huaxin) offering comprehensive after-sales services, including warranty, technical training, and spare parts supply.
Get Your Customized Hydraulic Briquetting Machine Solution
We’ve briquetting machine manufacturers/suppliers been manufacturing hydraulic briquetting presses for 10 years—we understand the demands of industry: high density, durability, and cost savings. Whether you need a hydraulic charcoal briquetting press for charcoal dust, a hydraulic biomass briquetting press for sawdust, or a large-scale briquetting press for mineral fines, we’ll tailor a press to your material, production volume, and production line.
Contact us today to receive:
- A free material analysis and capacity calculation (please provide your material and daily production volume).
- A video of our machine processing your material (e.g., charcoal dust, sawdust).
- A transparent quote (no hidden fees—it includes the machine, custom molds, installation, and training).
We don’t just sell machines—we help you transform loose waste materials into dense, high-profit briquettes. Let’s get your industrial briquetting line started!
