Flat Die Pellet Making Machines
Small-Scale Wood Pellet Machine & Home-Use Biomass Pellet Making Machine for Compact Production
Flat Die Pellet Machine Overview
Our Flat Die Pellet Making Machine is a versatile pelletizer designed for small-to-medium-scale wood and biomass pellet production. As a high-performance wood pellet machine and home pellet mill, it processes materials like wood chips, sawdust, straw, and rice hulls into uniform pellets (6–10mm adjustable).This compact mini pellet machine features a precision flat die pellet press structure, with a processing capacity of 50–500kg/h, making it ideal for rural families, small pellet workshops, and agricultural cooperatives.
Flat Die Pellet Making Machines Technical Parameters
| Modle | Main Motor(kw) | Capacity (t/h) | Raw material humidity (%) | Pellet size (mm) |
|---|---|---|---|---|
| HXFP-200 | 11 | 0.3-0.5 | 10-18 | 2-6 |
| HXFP-300 | 22 | 0.5-0.8 | 10-18 | 3-8 |
| HXFP-400 | 37 | 0.8-1.2 | 10-18 | 4-10 |
| HXFP-500 | 55 | 1.2-1.8 | 10-18 | 4-10 |
| HXFP-600 | 75 | 1.8-2.5 | 10-18 | 5-12 |

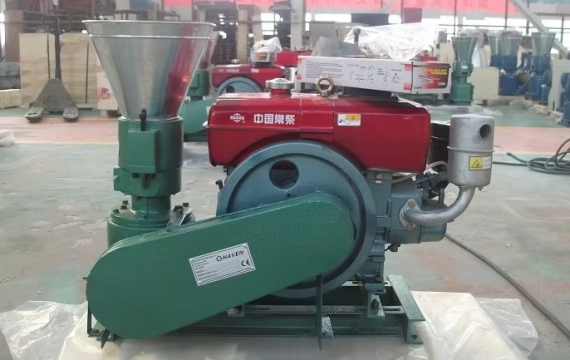

| Modle | Engine Power (HP) | Capacity (kg/h) | Pellet Diameter (mm) | Feed Size (mm) | Fuel Consumption (L/h) |
|---|---|---|---|---|---|
| HXMP-150D | 10 - 15 | 50 - 100 | 6 - 12 | ≤ 30 | 1 - 2 |
| HXMP-200D | 15 - 22 | 80 - 150 | 6 - 12 | ≤ 35 | 2 - 3 |
| HXMP-300D | 30 - 40 | 150 - 250 | 6 - 12 | ≤ 40 | 3-4 |
| HXMP-400D | 40 - 55 | 250 - 400 | 6 - 12 | ≤ 45 | 4-5 |
Note. The data in the table is for reference only. Please consult our company for details
Flat Die Pellet Making Machines Core Components
Flat Die
The flat die is hardened and highly wear-resistant, making it a key component for stable wood pellet making.
Pressure Rollers
Apply uniform pressure to squeeze the material into the die. The roller gap is adjustable to accommodate varying material hardness.
Gearbox
The transmission efficiency and load-bearing capacity of the reducer affect the loss rate of power transmission and the stability of granulation.
Pure Copper otor
The performance of the motor determines the power output stability and energy consumption of the equipment.
How Wood Pellets Are Made?
The core of this flat die pellet mill lies in its precision flat die and pressure roller structure, embodying the working mechanism of a compact pellet press wood device:
- Feeding: Raw materials are fed into the hopper manually or via a small conveyor, ensuring steady input for continuous wood pelleting.
- Grinding & Mixing: Materials are pre-crushed and mixed to a uniform texture, optimizing adhesion for pellet forming—critical for small-scale wood pellet manufacturing.
- Pressing & Forming: Inside the machine, the rotating flat die pellet press and fixed pressure rollers squeeze materials through die holes. The extruded strips are cut into short pellets by a built-in cutter, realizing the core function of a wood pelletizer machine.
- Discharging: Finished pellets are discharged directly from the bottom, requiring no additional cooling equipment for small-batch production—ideal for home pellet machine use.
Why Choose Our Flat Die Pellet Making Machines？
As a dedicated mini pellet machine and home pellet mill, its small size fits in garages or small workshops, and it can be moved easily, adapting to decentralized production needs.
The precision-machined pellet machine die (flat die) and optimized pressure roller design ensure a forming rate of over 90%, reducing material waste for cost-saving production.
This biomass pellet making machine handles both wood-based and agricultural materials, allowing users to utilize local waste resources (e.g., sawdust, straw) for pellet production.
Equipped with a simple control panel, it supports one-person operation. The detachable flat die pellet mill structure makes cleaning and replacing the die quick—no professional skills required.
The flat film design ensures more uniform compression of the raw material, resulting in high pellet density (typically 1.1-1.3 g/cm³) and resistance to breakage, meeting standard requirements for fuel or feed.
Compared to large industrial pellet mills, this small pellet machine has lower initial investment and energy consumption (3–22kW), making it accessible for individual users and small businesses.
What Finished Products can be Produced?
Main Application Scenarios
1. Household Heating
As a reliable home pellet mill, it produces pellets for domestic stoves or small boilers, replacing coal to reduce indoor pollution and heating costs.
2. Small-Scale Commercial Production
For local workshops, this small pellet machine manufactures marketable wood pellets, supplying nearby households or small businesses with clean fuel.
3. Agricultural Waste Utilization
It converts crop residues (straw, rice hulls) into pellets, solving waste disposal issues and creating extra income for farmers—exerting the value of biomass pellet making machine.
4. Livestock Feed Auxiliary
The machine also produces low-density pellets as livestock feed carriers, expanding its application beyond pellet fuel maker functions.
Customer Site Footage
Hot Markets Flat Die Pellet Making Machines for Sale
- Rural Areas (Global): High demand for home pellet machine to meet household heating needs, with low investment and easy operation fitting rural users’ requirements.
- Southeast Asia: Growing adoption of small pellet mill for agricultural waste recycling, driven by government support for biomass energy and waste reduction.
- Europe (Small-Scale Users): Popular as a flat die wood pellet mill for eco-conscious households, aligning with regional policies promoting clean, renewable heating.
Customer Application Cases
A Rural Family in Hebei, China
Adopted our 100kg/h Flat Die Pellet Making Machine to process local sawdust into heating pellets. The machine runs 4 hours daily, meeting the family’s winter heating needs and cutting coal costs by 40%.
A Small Pellet Workshop in Indonesia
Deployed 2 sets of flat die pellet press (200kg/h capacity) to produce wood pellets for local households. The compact design fits the workshop’s limited space, with monthly sales of 12 tons of pellets.
An Agricultural Cooperative in India
Used our biomass pellet making machine to process rice hulls into pellets. The project solves rice hull disposal issues and generates $800 monthly income by selling pellets to nearby small factories.
FAQ for Flat Die Pellet Making
Yes, it’s designed as a home pellet mill—small, low-noise, and compatible with household power supplies (220V), perfect for rural or suburban families.
With proper maintenance (regular cleaning and lubrication), the flat die lasts 800–1200 hours, and replacement dies are affordable and easy to install.
The optimal moisture content is 12–18%. If materials are too wet, dry them first—this ensures a high forming rate, a common requirement for wood pellet machine operation.
No. The machine comes with a user manual and simple control panel, allowing one person to master operation within 1–2 hours—ideal for small pellet machine users.
Yes, by replacing the flat die pellet press (different die hole diameters), you can produce 6–10mm pellets to match your heating or sales needs.
Yes. Under normal operation, the finished pellets can reach a density of 1.1-1.3 g/cm³ and a calorific value of ≥4200 kcal/kg, meeting the core requirements for biomass fuel and suitable for use in boilers, fireplaces, and other equipment.
Buyer's Guide
How to Buy the Best Flat Die Pellet Making Machine？
1. Determine Production Scale
For home use, choose 50–100kg/h models; for small workshops, opt for 200–500kg/h models—matching the small pellet machine capacity to your output needs.
2. Check Flat Die Quality
Prioritize machines with high-chromium alloy pellet machine die (flat die), as it ensures longer service life and stable forming rate—key for flat die wood pellet machine performance.
3. Confirm Power Compatibility
Ensure the machine’s power (3–22kW) matches your local power supply (220V/380V) to avoid installation issues, especially for home pellet mill use.
4. Focus on Portability
If you need to move the machine frequently, select lightweight models (150–300kg) with built-in handles—enhancing the flexibility of the mini pellet machine.
5. Verify After-Sales Support
Choose suppliers (like Huaxin) offering spare parts (flat dies, pressure rollers) and technical guidance, ensuring smooth operation of your wood pellet machine.
Get Your Custom Flat Die Pellet Making Machine Solution
With 10 years of experience manufacturing Flat Die Pellet Making Machine (professional wood pellet machine and flat die pellet mill), we understand the needs of small-scale users—low cost, easy operation, and compact design. Whether you need a home pellet mill for household heating or a small pellet machine for workshop production, we’ll tailor the equipment to your material type and capacity requirements.
Contact us today to get:
- Free capacity calculation (share your daily material volume and usage scenario—we’ll recommend the perfect flat die wood pellet machine model).
- Custom videos of our pelletizer processing your specific material (e.g., sawdust, straw).
- A transparent quote (no hidden fees—includes the machine, spare pellet mill die (flat die), and user manual).
As a pellet mill manufacturer and exporter, we not only sell high-quality biomass flat die pellet mills and home pellet mills, but we also help you transform local waste into valuable pellets. Let us kick-start your small-scale pellet production journey!
