Flash Dryer
High-Speed Industrial Drying Equipment for Biomass, Sludge & Powders
Flash Dryer Overview
Our Flash Dryer (also known as airflow dryer) is a high-efficiency industrial drying equipment designed for heat-sensitive, high-moisture bulk materials. It specializes in drying biomass powder, sawdust, chemical powders, and food additives—adopting a “pneumatic conveying + instant heat exchange” principle that dries materials from 40–80% moisture to 5–15% in just 5–30 seconds. As a core Continuous Flash Dryer, it supports 24/7 non-stop operation with a processing capacity of 500 kg–20 tons per hour, making it ideal for large-scale industrial production.
Technical Parameters of Flash Dryer
| Model | Power（kw） | Capacity（kg/h） | Reduced moisture |
|---|---|---|---|
| HXFD-22 | 5.5 | 400-600 | 10—15% |
| HXFD-36 | 7.5 | 600-800 | 15—25% |
| HXFD-48 | 11 | 1000-15000 | 15—25% |
Note. The data in the table is for reference only. Please consult our company for details

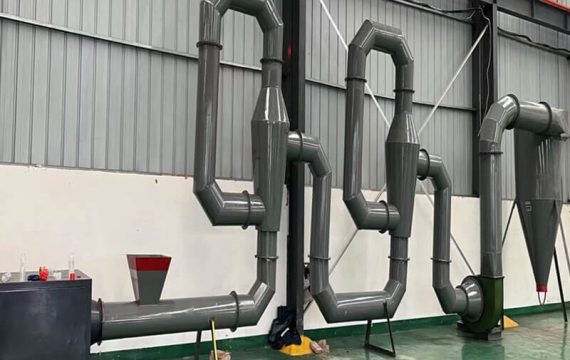

Core Components of Flash Dryer
The rapid, stable drying performance of this Industrial Flash Dryer relies on 6 specialized components, optimized for “instant heat exchange + material conveying”:
The core heat source, available in biomass, natural gas, or diesel configurations. It generates high-temperature, clean hot air (120–350℃) with stable temperature control (±5℃), ensuring uniform drying. Energy-Saving Flash Dryer models are equipped with a waste heat recovery device that recycles 20–30% of exhaust heat, reducing fuel consumption.
- Biomass Flash Dryer/Powder Flash Dryer: Screw feeder with anti-bridging design, preventing light powder from floating.
- Sludge Flash Dryer: Double-screw feeder with heating jacket, preheating sludge to avoid clogging.
- Spin Flash Dryer: Rotating atomizer (3000–5000 r/min), crushing paste-like materials into fine droplets for rapid drying. materials into fine droplets for rapid drying.

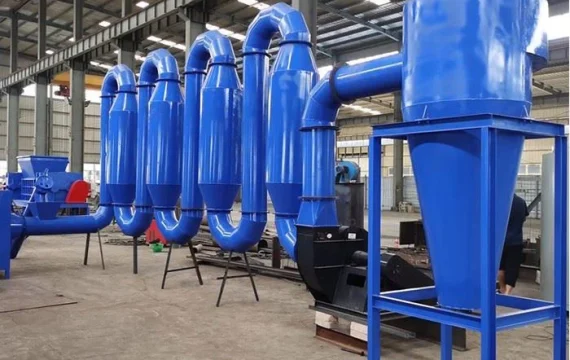

The core drying unit of Pneumatic Flash Dryer variants—3–8 meters long, with a diameter of 300–1200mm. Hot air and atomized materials mix fully in the pipe, and high-speed airflow (15–25 m/s) keeps materials suspended, maximizing heat exchange area and completing drying in 5–30 seconds.
A two-stage separation system that collects dried materials. The cyclone separator captures 80–90% of large particles, while the bag filter (polyester needle felt) captures 99.9% of fine powder—ensuring dust emission ≤20mg/m³ and no material waste.
A star-shaped discharger at the separator bottom seals the system while discharging dried materials, avoiding hot air leakage. Materials are then conveyed to a storage bin or directly to the next process (e.g., briquette machine) via a screw conveyor.
A touchscreen control panel integrating temperature, moisture, and feeding speed monitoring. It automatically adjusts hot air temperature and feeding rate based on final moisture sensor data—ensuring consistent drying quality and reducing manual intervention.
Working Principle of Flash Dryer
Industrial-grade flash air dryers use high-velocity hot air as a carrier to suspend and disperse materials, achieving instant drying. The process is divided into four steps:
- Material Pretreatment and Feeding: Wet materials (e.g., wet sawdust) are crushed and dispersed, then evenly fed into the drying system by a metering device to prevent clumping.
- High-Temperature Airflow Generation: A heat source heats air to 120–350℃, which is blown into a high-speed airflow (20–40 m/s) by a fan.
- Instantaneous Flash Drying: Wet materials enter the high-speed airflow and suspend instantly. The large contact area between hot air and material particles evaporates surface and internal moisture in 5–30 seconds, reducing moisture from 30–80% to 5–15%.
- Gas-Solid Separation and Collection: The mixture of dried materials and airflow is first separated by a cyclone separator, then fine particles are captured by a bag filter. Clean exhaust gas is discharged, meeting environmental standards.
Why choose our flash dryer?
Completes drying in 5–30 seconds—10–20 times faster than rotary dryers. A 2-ton/hour Biomass Flash Dryer processes 48 tons of wet sawdust daily, meeting large-scale biomass briquette plant needs.
Thermal efficiency ≥80%, with waste heat recovery for Energy-Saving Flash Dryer models—consuming 30% less fuel than traditional dryers. A 5-ton/hour model using natural gas spends only $150–200 on fuel per hour, saving $100,000+ annually.
Runs 24/7 without downtime, seamlessly integrating into automated production lines (e.g., “sludge crusher → Sludge Flash Dryer → sludge briquette machine”)—reducing labor by 60%.
Two-stage dust separation ensures dust emission ≤20mg/m³, meeting EU EN 13284-1 and China GB 16297-1996 standards. Sludge Flash Dryer models offer optional deodorization devices for eco-sensitive regions.
Which Materials can be Processed?
Main Application Scenarios
1. Biomass Fuel Industry
Biomass Flash Dryer dries sawdust powder, rice husk powder from 40–60% moisture to 8–12%—the optimal moisture for briquette machines or pellet mills.
2. Environmental Protection (Sludge Treatment)
Sludge Flash Dryer processes municipal sludge (moisture 70–80%) into dried sludge powder (moisture 10–15%)—made into building materials, or used as soil conditioner.
3. Chemical & Pharmaceutical Industry
Powder Flash Dryer dries heat-sensitive chemical powders and pharmaceutical intermediates—rapid drying avoids material decomposition
4. Mining & Building Materials
Large Capacity Flash Dryer dries mineral powders (limestone, talc) and ceramic slurries—improving subsequent product quality.

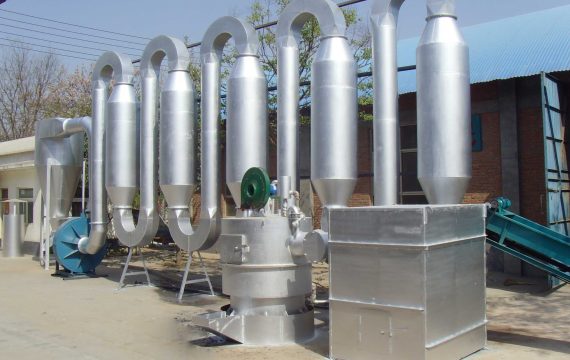

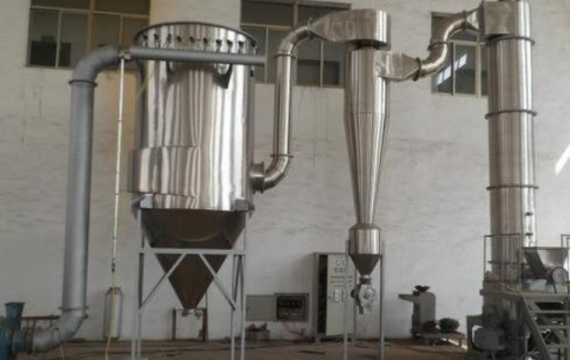

Customer Site Footage
Hot Market Flash Dryer for Sale
- Europe (Germany, France): Powder Flash Dryer and Pneumatic Flash Dryer are popular in pharmaceutical and food industries, requiring low-temperature drying and strict dust control.
- Southeast Asia (Indonesia, Thailand): Abundant biomass resources boost Biomass Flash Dryer sales—2–5t/h models are favored for local biomass fuel production.
- North America (USA, Canada): Large-capacity models (10–20t/h) are used in municipal wastewater plants, with dried sludge recycled for landfill cover or energy.
Customer Application Cases
A Chinese Biomass Briquette Plant
Uses a 5t/h Biomass Flash Dryer to dry sawdust powder from 50% to 10% moisture. Dried powder is pressed into briquettes, with a daily output of 120 tons—sold to local power plants, generating $2.4 million annual revenue.
An Indonesian Palm Oil Mill
Runs a 3t/h Biomass Flash Dryer to dry palm kernel shell powder from 45% to 12% moisture. The dried powder fuels the mill’s boilers, replacing 30% of natural gas—saving $360,000 in annual energy costs.
A wood flour factory in India
Adopts a 2-ton/hour Flash Dryer to reduce sawdust moisture from 45% to 18%. Stabilized moisture increases wood powder production efficiency by 30%.
Frequently Asked Questions for Flash Dryer
It handles pastes, filter cakes, granules, and wet powders—covering biomass, sludge, chemicals, food additives, and pharmaceuticals.
No. Throughput is influenced by initial moisture (30–80%), particle size, hot air temperature, and airflow velocity. Provide your material details and output needs for a customized model (0.5–50 tons/hour).
Yes. It stably controls moisture at 5–15%, or below 3% for special needs (e.g., fine chemicals). The PLC system adjusts feed rate, temperature, or airflow for ±1% accuracy with an online moisture meter.
Only 5–30 seconds—ideal for heat-sensitive materials. Controlling inlet air at 120–180℃ prevents overheating and decomposition.
Options include natural gas, biomass fuel, electric, steam, and industrial waste heat. Waste heat recovery cuts fuel costs by over 60% where available.
Small models (≤1t/h) need 30–50㎡; large models (≥10t/h) need 80–150㎡. The floor load-bearing capacity ≥500kg/m², with good ventilation and 1.2m+ maintenance access. Gas heat sources require explosion-proof safety distances.
No. The PLC automatic control system runs preset parameters, requiring only 1–2 operators for monitoring. Free on-site training (1–2 days) covers parameter setting and troubleshooting.
Weekly: Clean separators and check fan belts; Monthly: Lubricate bearings and calibrate sensors; Quarterly: Replace air filters. Consumables (filter bags, seals) are easy to replace without specialized tools.
Buyer's Guide
How to Choose the Best Flash Dryer?
Choose Biomass Flash Dryer for sawdust/rice husk, Sludge Flash Dryer for municipal/industrial sludge, Spin Flash Dryer for paste-like materials, and Pneumatic Flash Dryer for light powders.
Small workshops (≤10 tons/day dried material): 500kg–2t/h; Medium factories (10–50 tons/day): 2–5t/h; Large plants (≥50 tons/day): 5–20t/h Large Capacity Flash Dryer (or parallel units).
Biomass pellets (≤$0.1/kg): Biomass Flash Dryer; Natural gas (≤$0.8/cubic meter): All variants; Electric (≤$0.08/kWh): Small models (≤2t/h).
High fuel costs: Energy-Saving Flash Dryer with waste heat recovery; Eco-strict regions: Ensure bag filter and deodorization device (for sludge).
Quality-sensitive materials (pharmaceuticals/food): Models with real-time moisture sensors (±1% error) and PLC control; Labor-short regions: Fully automated models (auto-feeding/temperature adjustment).
Choose suppliers specializing in your target variant (e.g., wastewater plant cases for Sludge Flash Dryer, biomass fuel plant references for Biomass Flash Dryer). Request on-site visits or live operation videos to confirm drying effect.
Get Your Custom Industrial Pneumatic Flash Dryer Solution
As a leading manufacturer of Industrial Flash Dryer, we tailor solutions for Biomass Flash Dryer, Sludge Flash Dryer, Powder Flash Dryer, and Large Capacity Flash Dryer applications. Whether you need to dry sawdust, sludge, or chemical powders, we’ve got you covered.
Contact us today to get:
- Free capacity calculation (share your material’s wet weight and target moisture—we pick the right model).
- Videos of our dryers running in your industry (e.g., sawdust drying, sludge treatment).
- A transparent quote (no hidden fees—includes main unit, heater, separator, and installation).
We don’t just sell dryers—we help you cut drying time, save energy, and turn wet materials into high-value products. Let’s get your rapid drying line started!
