Drum Wood Chipper
Professional Industrial Wood Chipping Equipment for Large-Scale Needs

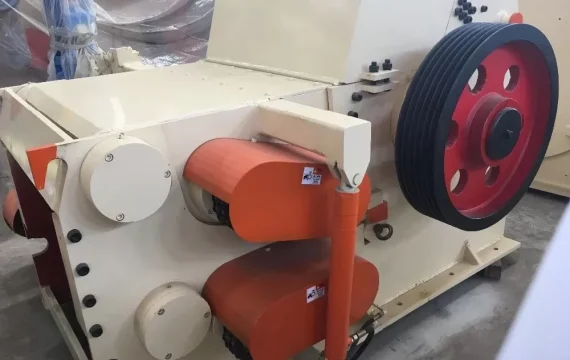

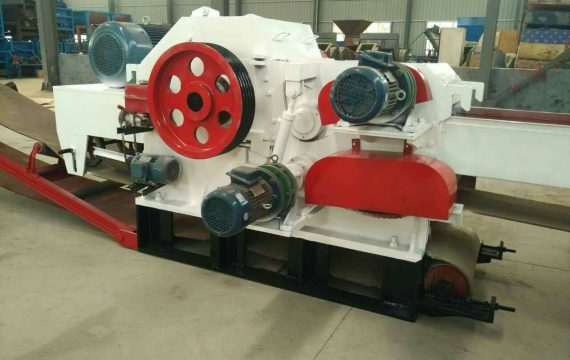

Drum Wood Chipperr Overview
Our drum wood chipper—a flagship model in our lineup of industrial wood chippers—is engineered to deliver unmatched efficiency for processing logs, branches, and fibrous materials. Whether you’re running a wood-based panel factory, biomass energy plant, forestry operation, or large landscaping company, this heavy-duty wood chipping machine eliminates the hassle of bulk material transportation, letting you turn waste into valuable resources right on-site. As a trusted wood chipper manufacturer, we offer customizable configurations to meet the unique demands of industrial production and commercial operations alike.
Drum Wood Chipper Technical Specifications
| Modle | Main Motor(kw) | Knife Roller Diameter(mm) | Feeding Speed(m/min) | Feeding Diameter(mm) | Chipper Length(mm) | Throughput(m³/h) |
|---|---|---|---|---|---|---|
| HXDWC-300 | 30 | 300 | 38 | 90 | 2-20 | 3-5 |
| HXDWC-550 | 55 | 650 | 37 | 120 | 22 | 10 |
| HXDWC-1100 | 110 | 800 | 37 | 160 | 20 | 15-20 |
| HXDWC-1320 | 132 | 800 | 30 | 160 | 30 | 35-40 |
| HXDWC-2000 | 200 | 1300 | 38 | 230 | 38 | 40-70 |
| HXDWC-2000 | 800 | 2000 | 31 | 230 | 38 | 150-200 |
Note. The data in the table is for reference only. Please consult our company for details

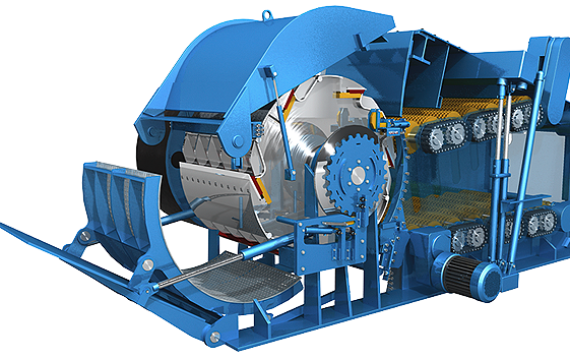

How Does a Commercial Drum Wood Chipper Work?
The operation of our industrial wood chipper is streamlined for high efficiency, following three key stages:
- Feeding: Load raw materials (logs, branches, bamboo) into the feed hopper. The automatic feeding mechanism pushes the material steadily toward the rotating drum, avoiding jamming and ensuring consistent processing.

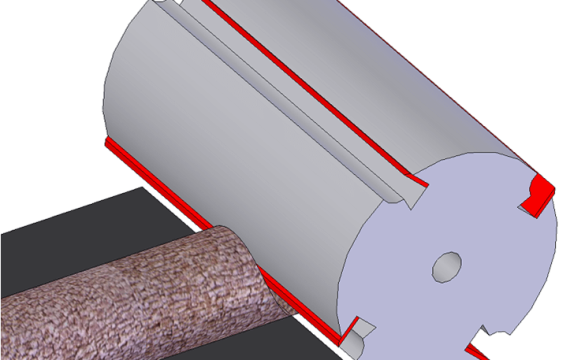

- Cutting: The high-speed rotating drum blades shear the material into uniform chips. Adjusting the blade spacing allows you to achieve the exact particle size needed for your application, from fine biomass fuel to coarse wood chips for industrial use.
- Discharging: The cut wood chips are expelled through the rotatable discharge port, which can be adjusted to match your collection setup. This on-site processing capability cuts down on transportation costs and improves overall workflow efficiency.
Core Advantages of Our Drum Wood Chipper
Easy Maintenance
The chipper’s crushing chamber is equipped with a safety cover that can be easily opened hydraulically.

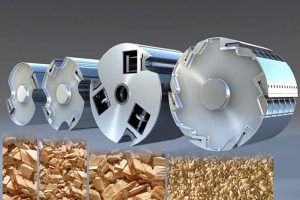

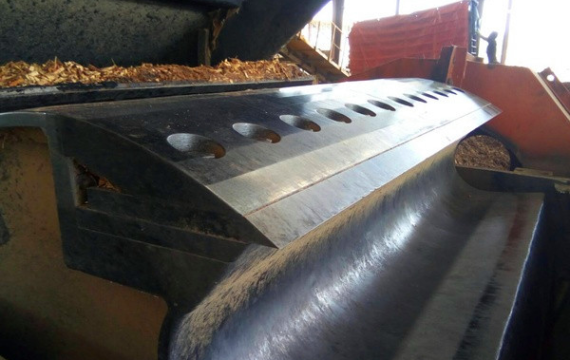

Wear-Resistant Blade
The blade is made of H13 material and can cut hardwoods for a longer life without requiring sharpening.

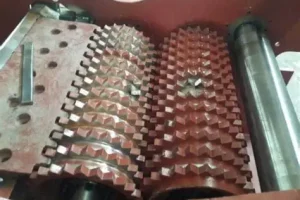

Sturdy Feed Mechanism
The wear-resistant manganese steel feed rollers feature precise meshing, ensuring stable feed.

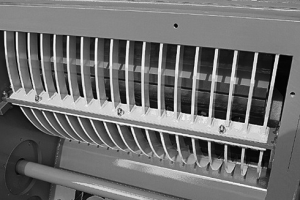

Customizable Screens
Screen sizes are custom made to produce a final product that meets specific requirements.
Convenient Feeding
The feeder can be equipped with a conveyor chain or conveyor belt to improve feeding efficiency
Support Diesel Drive
Electric drive and diesel drive are optional to meet the working needs of various environments.
What Materials Can Our Wood Chipper Process?
Main Application Scenarios

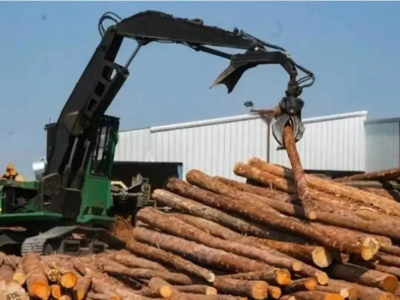

1. Industrial Wood Processing
Ideal for wood-based panel factories, paper mills, and furniture manufacturers, using the industrial wood chipper to convert raw wood into processed chips for production.
2. Biomass Energy Production
As a key piece of biomass wood chipper equipment, it processes wood waste into high-quality biomass fuel particles, supporting clean energy initiatives and carbon neutrality goals.
3. Large-Scale Landscaping & Forestry
Commercial tree chipper models help landscaping companies and forestry teams process massive volumes of pruning waste into mulch, reducing landfill reliance and creating valuable resources.
4. Construction Waste Handling
Converts construction wood waste into reusable chips, serving as a reliable construction waste chipper for eco-friendly building projects.
Customer Site Footage

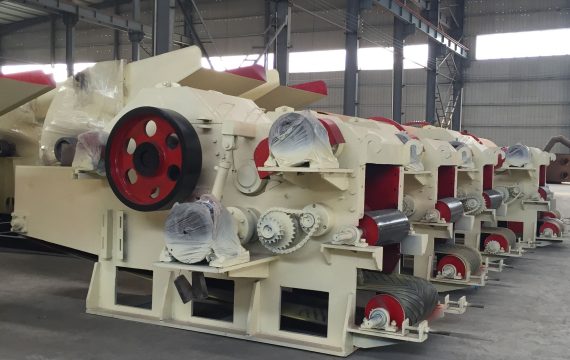

Hot Market Drum Wood Chipper for Sale
- The United States, with its vast forest resources, developed forestry industry, and thriving biomass energy industry, has become the largest market for rotary drum wood chippers.
- Argentina’s rapidly developing forestry and agriculture sectors are driving a growing demand for wood chipping equipment for wood processing and farm waste processing.
- Bangladesh is using wood chippers to process tree debris and aid resource recycling in its urban development and greening efforts.
Real Customer Success Stories
A Plywood Factory in Shandong
Our industrial drum wood chipper can process 4 tons of logs per day, increasing production efficiency by 40% and reducing raw material waste by 25%.
A biomass power plant in Brazil
Convert forestry waste into biomass fuel with our large commercial wood chipper. This unit can process 5 tons of wood per hour, providing clean energy for 2,000 homes annually.
A wood recycling company in Pakistan
Our drum wood chippers are used to process recycled building formwork and wood waste into biomass pellets, recycling construction waste and reducing landfill use by 70%.
FAQ for Drum Wood Chipper
It is capable of processing roundwood, branches, veneer, bamboo, and other wood types, including hardwoods like oak and pine, as well as softwoods such as poplar. It functions effectively as both a roundwood chipper and a bamboo wood chipper, catering to diverse processing needs.
Open the crushing chamber cover using the hydraulic system and replace the screen with a different aperture (standard 30–50mm). Custom screens are available to meet specific production requirements for different chip sizes.
The blades are made of H13 alloy steel. Depending on the hardness of the processed materials, they can operate continuously for up to 1,000 hours without sharpening, ensuring a long service life and reducing maintenance costs.
Mobile models with a towable design and diesel engine are specifically designed for outdoor operations, making them ideal for remote industrial sites or commercial landscaping projects in open areas.
Yes, it can be equipped with a chain feeder and discharge conveyor to form a large-scale continuous production line, perfectly adapting to the needs of industrial mass production and large-volume commercial operations.
Buyer's Guide:
How to Select a High-Quality Wood Chipper?
1. Clarify Your Usage Scenarios
Determine whether you need an industrial wood chipper for large-scale factory production or a commercial wood chipper for service-oriented operations . Select the appropriate model based on the primary processing materials and hourly processing capacity requirements.
2. Confirm Equipment Configuration
Assess your production automation needs to decide whether to equip additional feeding or discharging systems, ensuring the equipment seamlessly integrates with your existing production process or service workflow.
3. Choose the Right Power System
Select an electric-driven fixed model for indoor industrial use or a diesel-driven mobile model for outdoor commercial operations, based on the energy conditions and working environment of your site.
4. Pay Attention to Pricing and After-Sales Service
Prioritize manufacturers like Huaxin that offer free wood chipper price quotes, a one-year warranty, fast spare parts supply, and professional technical training to ensure smooth subsequent use and maintenance.
Get Your Customized Drum Wood Chipper Solution
We’ve built drum wood chipper for 15 years—we know what works for palm mills, sawmills, gardens, and biomass plants. Whether you need a wood chipper for bamboo in Vietnam, a roundwood chipper in Brazil, or a fixed industrial model in China, we’ll tailor it to your needs.
Contact us today to get:
- Free capacity calculation (tell us your daily waste volume + material type—we recommend the right model).
- Videos of our chippers running in your industry (e.g. log slices, bamboo slices).
- Transparent wood chipper price quote (no hidden fees—includes delivery, 2 blade sets, 2 screens).
We don’t just sell machines—we help you turn wood waste into profit. Let’s get your crushing line running efficiently!
