Customized Charcoal & Biochar Pellet Production Line
Turn charcoal powder, biomass char, or carbonized agricultural waste into high-density, multi-purpose pellets
What Is a Customized Charcoal & Biochar Pellet Production Line?
A customized charcoal & biochar pellet production line is a fully integrated, purpose-built system that transforms carbon-rich materials—think charcoal powder, biochar from crop residues/wood waste, coconut shell char, or mixed carbonized feedstock—into uniform, strong pellets. Unlike loose char, these pellets solve big pain points: minimal dust, easy storage and transport, steady burning, and enhanced functionality (like biochar pellets retaining porosity for soil health, or charcoal pellets delivering consistent heat for grilling).
Every step—from prepping raw char (crushing, drying, removing impurities) to mixing (with optional binders or nutrient additives), pelletizing, curing, cooling, screening, and packaging—is fine-tuned to handle char’s unique quirks: low density, porous structure, varying moisture levels, and carbon content. This tailored approach ensures your pellets meet exact quality standards and work seamlessly for your target use.
Key Customization Factors (Shaped Around Your Needs)
We don’t do one-size-fits-all—here’s what drives the design of your unique line:
- Raw Material Profile: The type of char you’re using (charcoal powder, biochar, coconut shell char, bamboo char) and its specs:moisture (5%-20%), carbon content (60%-95%), particle size (raw char ≤10mm), and how much ash/metal is mixed in. This tells us how to grind it, how dry it needs to be, and if you’ll need binders.
- Target Production Capacity: From 300 kg/h (small-scale—supplying local BBQ shops or organic farms) to 20 T/H (large-scale industrial heating or export).
- End-Product Specifications: Pellet diameter (6-30mm), density (≥1.2 g/cm³), strength (≥600 N/pellet), heat output (6000-8500 kcal/kg for charcoal pellets; ≥5000 kcal/kg for biochar pellets), and use-specific needs (e.g., porous structure for soil, low ash for BBQ).
- Space & Layout: We’ll fit the line to your workshop—even a 1 T/H setup works in 200㎡. Tight on space? We’ll optimize vertical placement.
- Automation Level: Choose from basic manual checks to full PLC + SCADA control (cuts labor costs by 55% for lines making 5+ T/H).
- Environmental Compliance: Add dust collectors (emissions ≤10 mg/m³), odor control, or noise reduction (≤78 dB) to meet local rules (EU REACH, US EPA, or regional standards).
- Binder & Additive Options: Eco-friendly binders (starch-based, lignin-based, or biochar-derived) for strength, or nutrient additives (nitrogen/phosphorus/potassium for soil pellets) to boost functionality.
Core Advantages of Our Customized Solutions
- Targeted pretreatment: Heavy-duty crushers with anti-wear liners grind tough char (like coconut shell char) into 0.1-2mm fine powder, while air separation pulls out 99% of ash and light impurities.
- Smart moisture control: Drying systems knock raw char moisture from 5%-20% down to 8%-12%—the sweet spot where pellets don’t crack (from over-drying) or fall apart (from under-drying).
- Porosity preservation (for biochar): Low-pressure pelletizing (50-100 MPa) keeps biochar’s porous structure intact—critical for holding water and nutrients in soil.
- Strong & long-lasting: Pellets hit ≥1.2 g/cm³ density and ≥600 N strength—less than 2% break during shipping, perfect for bulk orders.
- Versatile performance:

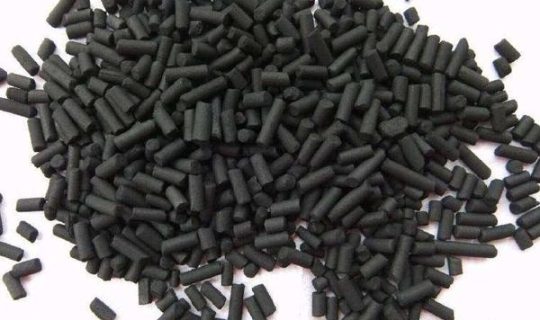

1. Charcoal pellets: Burn hot (6000-8500 kcal/kg), clean (low smoke), and slow (2-3x longer than loose charcoal)—ideal for BBQ, camping, or home heating.
2. Biochar pellets: Retain 2-3x their weight in water, feed soil microbes, and lock in carbon—great for organic farming or cleaning up contaminated soil.
- Less labor: A 5 T/H automated line needs just 3-4 workers per shift (vs. 6-8 for generic setups).
- Energy savings: Waste heat from curing gets reused, cutting energy costs by 25%.
- Quick payback: Most clients recoup investments in 1.5-3 years—driven by booming demand for BBQ charcoal (8% annual global growth) and biochar soil amendments (organic farming trend).
- Top-tier parts: High-chromium alloy rollers and molds (last 10+ months) and Siemens motors—backed by a 2-year warranty.
- Easy upkeep: Modular design with quick-access panels for cleaning and part swaps; downtime stays under 1.5 hours/month.
Add capacity later (e.g., from 2 T/H to 12 T/H) or upgrade functions (e.g., add nutrient mixing for soil pellets) without shutting down operations.
How It Works: Step-by-Step Custom Process
Each step is tailored to your char type and goals—here’s how we turn raw char into finished pellets:
Use our HXCC Char Crusher (30-75 kW) to break ≤10mm raw char into 1-3mm pieces. A vibrating screen and magnet pull out ash, metal scraps, and big impurities—protects your machines and keeps pellets pure.
The HXCM Char Hammer Mill (45-110 kW) grinds prepped char into 0.1-2mm powder. Adjust screens for your end use: 0.1-0.8mm for strong BBQ pellets, 0.8-2mm for porous biochar soil pellets.
Our HXRD Low-Temp Char Dryer (20-60 kW) uses biomass, gas, or waste heat to lower moisture from 5%-20% to 8%-12%. Low temps (60-90℃) avoid burning carbon and preserve biochar’s porosity.
- For BBQ pellets: HXMX Char Mixer (11-22 kW) blends in 2%-4% eco-binders (lignin or starch) to boost strength and cut smoke.
- For soil pellets: Add 5%-10% nutrients (NPK, humic acid) or clay (for slow release)—mixing accuracy ±1% ensures every pellet works the same.
- Pressure: 5-15 MPa (high for BBQ pellets, low for biochar to keep pores).
- Molds: Swap to make 6-30mm pellets.
- Binder-free option: Works for high-lignin char (like wood biochar)—saves money and stays eco-friendly.
Fresh pellets (50-70℃) cure in a ventilated chamber to get stronger, then cool to room temp with our HXSC Counterflow Cooler (7.5-15 kW). Moisture drops to 6%-8%—no clumping in storage.

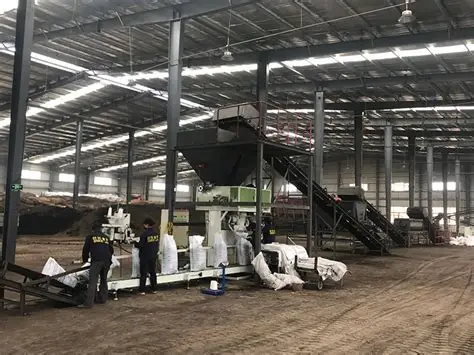

A vibrating screen sifts out ≤1% of fines, so only top-quality pellets move on. Choose 1-25 kg bags (retail/BBQ), bulk loaders (industrial/export), or vacuum packaging (for biochar soil pellets to lock in moisture).
Customized Options:
We build your ideal production line based on your needs, tailoring each step across the following key dimensions:
| Customization Dimension | Optional Configurations & Specs | Typical Use Cases |
|---|---|---|
| Production Capacity | 300 kg/h - 20 T/H | Small: 300 kg-2 T/H (local BBQ/soil amendment); Medium:3-8 T/H (regional suppliers); Large: 10-20 T/H(industria/export) |
| Automation Level | Basic (manual monitoring)-Full PLC + SCADA integration | Lines 25 T/H save 55% on labor with automation |
| Raw Material Adaptability | Charcoal powder, biochar (crop/wood waste), coconutshell char, bamboo char, mixed char | Biochar lines add porosity-preserving tools; hard char(coconut shell) uses heavy-duty crushers |
| Environmental Compliance | Pulse dust collectors (≤10 mg/m³), odor control, noisereduction | EU/US projects or organic farming (strict eco-standards) |
| Pellet Specifications | Diameter: 6-30mm; Density: ≥1.2 g/cm; Strength: 600N/pellet | 6-12mm (BBQ/camping); 15-30mm (industrial heating); 8-16mm (soil amendment) |
| Additive/Binder | Eco-binders (lignin/starch), nutrient additives (NPK/humicacid), binder-free | Binders for BBQ pellets; nutrients for soil pellets; binder-free for high-lignin char |
Real-World Success Stories
Our Customization & Service Process
1. Deep Dive Consultation
We’ll chat about your raw char type, capacity goals, pellet use (BBQ/soil/industrial), budget, and workshop layout—no jargon, just clear conversation.
3. Transparent Quotation
No hidden fees—we list costs for equipment, installation, training, and spare parts upfront.
5. Install & Train
Our engineers set up the line, test it, and teach your team to run it—critical for automated systems.
2. Feasibility & Design
We’ll draft a detailed flow chart, equipment list, and layout (e.g., fitting a dryer in tight spaces or adding porosity tools for biochar).
4. Build to Your Specs
We manufacture custom parts (like porous-preserving molds or nutrient mixers) just for you.
6. Long-Term Support
We offer remote/on-site tech help, fast spare parts (like roller replacements), and tweaks if your char quality changes.
Frequently Asked Questions.
FAQ. about Charcoal & Biochar Pellet Production Line
8%-12% after drying. Our adaptive dryer handles 5%-20% initial moisture, so you don’t have to pre-dry char yourself.
Absolutely. Swap molds, adjust pelletizing pressure, and switch additives—you can go from BBQ pellets to soil pellets in 1-2 hours.
Yes! Our low-pressure process keeps biochar’s porous structure (≥50% porosity), so it still holds water and nutrients—we test this before delivery.
Yes. Our team has set up lines in 25+ countries—we’ll come to you, install, and offer remote support if you need it later.
1.5-3 years. BBQ pellet lines usually pay back faster (high demand), while biochar soil lines take a bit longer—but both benefit from low raw material costs.
Start Your Custom Project Today
Ready to turn char materials into high-value pellets? Get a free consultation and preliminary design from our team.
Just share:
- Raw char type (charcoal/biochar/coconut shell char) and specs (moisture, carbon content)
- Desired hourly/annual capacity
- Target pellet use (BBQ/soil/industrial) and specs (diameter, strength)
- Workshop space and infrastructure
We’ll craft a solution that fits your business like a glove—boosting efficiency, expanding your market, and maximizing profits.
