We frequently receive inquiries from clients across Southeast Asia, Africa, and South America asking the same question: “How do I set up a sawdust charcoal production line that is both efficient and scalable?”
Based on the hundreds of on-site engineering cases I have personally documented, I put together this complete design and layout guide. I want to focus not just on the machinery, but on the strategic flow of your factory floor.

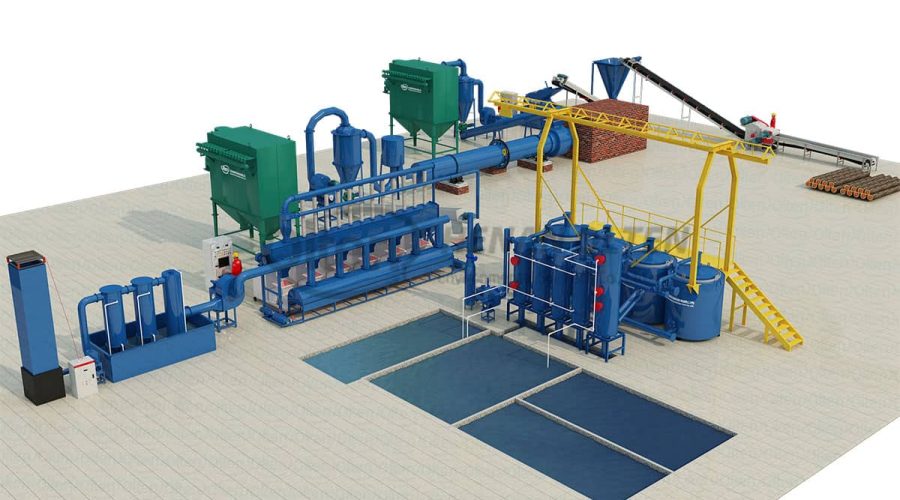

1. Overview of the Complete Production System
A standard sawdust charcoal production line is a continuous system designed to turn waste biomass into high-density charcoal briquettes. As noted in leading technical references, a complete wood chip charcoal production line consists of four core modules: pre-treatment equipment, wood briquette press machine, carbonization equipment, and post-processing equipment.
At Huaxin Machinery, we have built charcoal production plants ranging from 1 ton per day to 10 tons per day, typically configured with a wood crusher, hammer mill, wood chip dryer, sawdust bar making machine, vertical carbonization furnace, and packaging machine.
The market for this technology is expanding rapidly. The global continuous charcoal making machine market is projected to reach US$ 31.4 million by 2031, growing at a CAGR of 5.7%, driven by increasing demand for renewable biomass energy. This growth creates a strong investment incentive for anyone looking to enter the sawdust charcoal business.
2. Step-by-Step Design Principles
Designing a charcoal production plant requires more than just buying equipment—it is about orchestrating a material flow.
Stage 1: Raw Material Preparation
The line starts with crushing heterogeneous wood waste into consistent particles of 3mm to 5mm using a hammer mill. If you are using very fine sawdust, you may skip the crusher, but most operations require it to ensure uniformity.
Many clients neglect the wood chip dryer at this stage. In my experience, moisture content must fall between 8% and 12% before briquetting; anything above that will result in loose, low-quality briquettes that crack during carbonization. A rotary dryer or airflow dryer with a temperature control range of 80°C to 120°C is the industry standard for reducing moisture from above 30% down to the target zone.
Stage 2: Briquetting

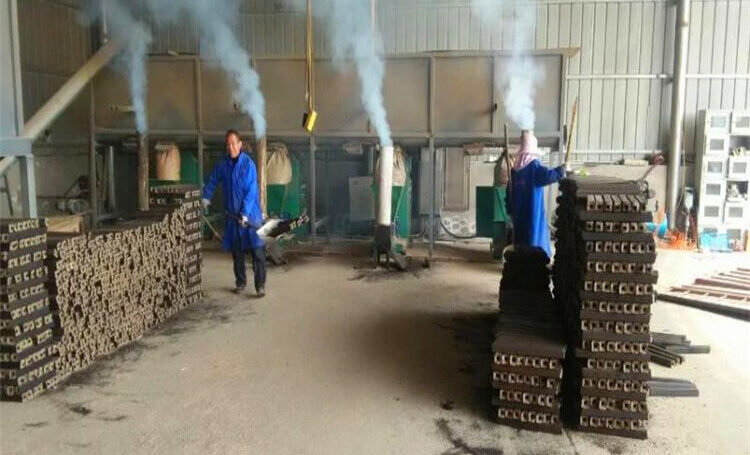

This is the heart of the line. The prepared sawdust enters a screw briquette press, where high temperature and high pressure fuse the lignin naturally present in the biomass. The machine extrudes dense hexagonal or square logs. According to production data, the briquette density typically reaches 1.0 to 1.2 g/cm³. This density is critical because it reduces the subsequent carbonization cycle and cuts energy consumption by approximately 30–50 yuan per ton of charcoal.
A key lesson I have learned from workshop layouts: always install a screw feeder (spiral distributor) before the briquette press. A sudden surge of sawdust will instantly clog the machine’s feeding port, causing costly downtime. The feeder meters the material accurately to prevent this.
Stage 3: Carbonization
The sawdust logs are transferred to a carbonization furnace. Continuous vertical furnaces are the most popular choice for industrial production because they offer automated temperature control and consistent output. The pyrolysis process occurs at 300°C to 600°C under an oxygen-limited environment. I strongly recommend continuous carbonization furnaces over traditional kilns for any serious business. They improve charcoal yield, reduce harmful emissions, and enable 24-hour operation.

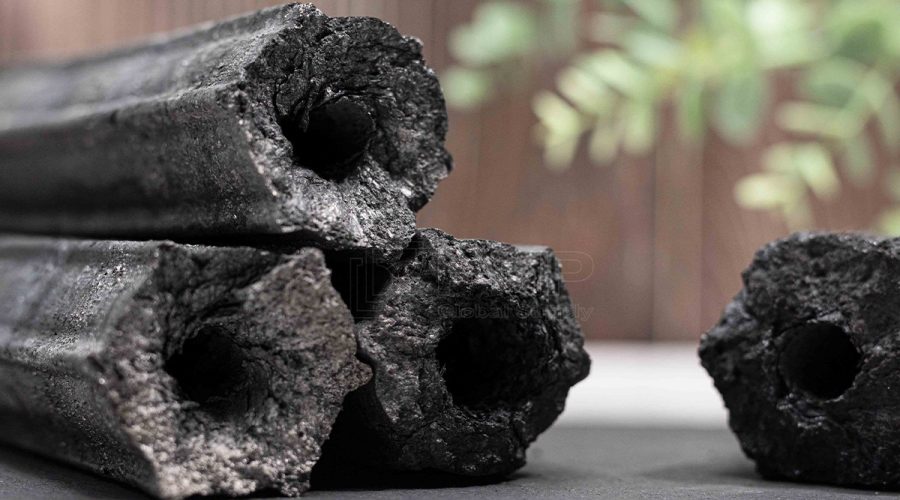

Stage 4: Cooling & Packaging
Freshly carbonized charcoal is hot and fragile. A cooling conveyor system lowers the temperature to safe levels before the briquettes enter a screening machine to remove fines. Finally, a packaging machine weighs and bags the charcoal for shipping.
3. Factory Floor Layout Strategy
Based on my site visits, a poor layout is the number one cause of inefficiency. You need a linear flow from feed to finish. Here is the optimal configuration:
- Position the crusher and dryer outside or in a ventilated bay. This process generates dust and steam, which should be kept away from the finished product area.
- Place the briquette press indoors but close to the raw material storage. This minimizes conveyor distances.
- Locate the carbonization furnace at the far end of the line, with the cooling and packaging section adjacent to the warehouse exit for rapid loading.
When designing your briquette production plant layout, ensure material flows in one direction with minimal re-handling, keep dusty operations isolated, and reserve a dedicated area for electrical panels and maintenance access. Never arrange equipment in a U-shape or around corners unless space is extremely limited. Every bend in the conveyor belt adds a risk of material backup and makes daily maintenance harder.
4. Economic Considerations and Market Outlook
Understanding the financials is just as important as the technical design. A small-scale sawdust charcoal production line requires approximately 40,000 RMB in equipment investment, which translates to a depreciation cost of about 80 RMB per ton of charcoal when amortized over a 5-year lifespan.
Based on current market analysis, the global charcoal briquette market is forecast to grow from USD 2.82 billion in 2025 to USD 4.69 billion by 2031, representing an 8.85% CAGR. Meanwhile, the Asia-Pacific biomass briquette market is anticipated to register a CAGR of 8.32% during 2026-2034.
For investors evaluating sawdust charcoal making machine profit, a small-scale project with a monthly output of 60 tons can generate a monthly net profit of 9,000–12,000 yuan, with a payback period of 6–12 months. A well-optimized sawdust charcoal making machine setup can achieve payback within 12 to 24 months, depending on capacity and market price fluctuations.
These figures reveal a clear trend: the shift toward sustainable fuel production and the circular economy is accelerating. By turning sawdust—a disposal liability—into a premium product, you position your business at the forefront of the industry.
5. Pro Tip: Environmental Compliance
Finally, never skip the auxiliary equipment. A cyclone dust collector and flue gas purification system are not just optional add-ons—they are your license to operate in regulated markets. The volatile gases released during carbonization can be captured and recycled as fuel to heat the dryer, creating a closed-loop system that lowers your energy bills and meets environmental standards simultaneously.
A properly designed sawdust charcoal production line is a balance of mechanical precision and spatial intelligence. By following these guidelines, you will avoid rookie mistakes and build a system that runs profitably for years.
FAQ
Q1: What is the smallest capacity I can start with?
A1: The smallest commercial lines start at around 1 ton per day. Pilot-scale units exist, but they are not economically viable for business.
Q2: How much floor space do I need for a 3–6 ton/day line?
A2: You should allocate at least 200 to 300 square meters, including raw material storage and finished product warehousing.
Q3: Can I use rice husks or coconut shells instead of sawdust?
A3: Yes. The charcoal production line can process a variety of agricultural waste—rice husks, coconut shells, peanut shells, and coffee grounds—with minor adjustments to the crusher screen size.
Q4: What is the payback period for a small sawdust charcoal line?
A4: Based on my analysis of client data, a small-scale project with a monthly output of 60 tons can achieve a payback period of 6 to 12 months.
Q5: How long do the heating coils in the briquette press last?
A5: With proper maintenance and consistent material quality, the heating rings typically last 1,500 to 2,000 operating hours before needing replacement.
Q6: Is the carbonization process smokeless?
A6: Modern continuous carbonization furnaces are designed to be nearly smokeless when equipped with flue gas treatment systems. The volatile gases are burned as fuel rather than released raw.
Q7: Do I need to prepare a concrete pit for the equipment?
A7: Yes. For stability and vibration control, most carbonization furnaces require a concrete foundation. We provide pit drawings with each shipment.
Q8: How does the quality of sawdust charcoal compare to traditional wood charcoal?
A8: Sawdust charcoal has higher density, longer burn time, and lower ash content. It burns more consistently and is preferred in industrial applications.
Q9: Can the line be automated with a single control panel?
A9: Mid-sized and large lines can be equipped with a fully automatic PLC control system that adjusts temperature, feeder speed, and cooling in real time.
Q10: What certifications does Huaxin Machinery provide for export?
A10: We provide CE certification for compliance with European safety standards, along with detailed installation drawings, operation manuals, and a one-year warranty on core components.
