Biomass Gasification Furnace
High-Efficiency Biomass Pyrolysis Gasifier for Renewable Energy System Utilization
Biomass Gasification Furnace Overview
Our biomass gasifiers utilize novel high-temperature pyrolysis gasification technology. Under anoxic/anaerobic conditions, they convert low-calorific-value solid biomass feedstocks (agricultural and forestry waste, straw, sawdust, rice husks, etc.) into clean, combustible gas through thermochemical reactions. We provide one-stop design, production, and installation services, suitable for various applications such as rural distributed energy, industrial heating, biomass power generation, and carbon-gas cogeneration. They are an ideal choice for biomass energy and waste recycling projects.
Technical Parameters of Biomass Gasification Furnace
| Model | Serial No | Gas Production | Heat Output | Fuel Consumption per Hour | Furnace Type |
|---|---|---|---|---|---|
| HXGF-1300 | 1 Ton | ≥500 m³/h | 600,000 Kcal | 250 kg | Φ1.3m |
| HXGF-1500 | 2 Tons | ≥1000 m³/h | 1,200,000 Kcal | 500 kg | Φ1.5m |
| HXGF-1800 | 3 Tons | ≥1500 m³/h | 1,800,000 Kcal | 750 kg | Φ1.8m |
| HXGF-2000 | 4 Tons | ≥2000 m³/h | 2,400,000 Kcal | 1000 kg | Φ2.0m |
| HXGF-2400 | 6 Tons | ≥3000 m³/h | 3,600,000 Kcal | 1500 kg | Φ2.4m |
| HXGF-2600 | 8 Tons | ≥4000 m³/h | 4,800,000 Kcal | 2000 kg | Φ2.6m |
| HXGF-3000 | 10 Tons | ≥5000 m³/h | 6,000,000 Kcal | 2500 kg | Φ3.0m |
| HXGF-3600 | 15 Tons | ≥7600 m³/h | 9,000,000 Kcal | 3800 kg | Φ3.6m |

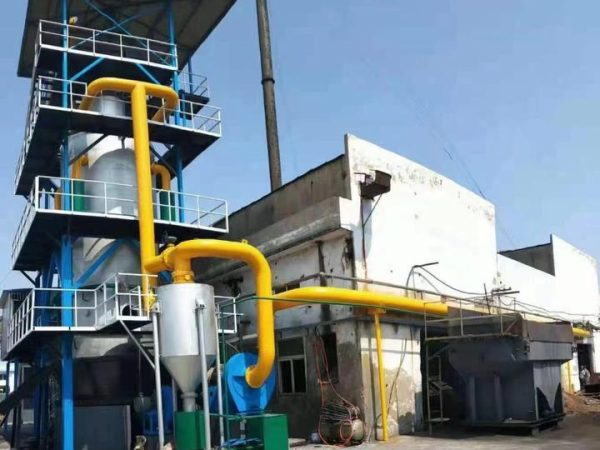

Biomass Gasification Furnace

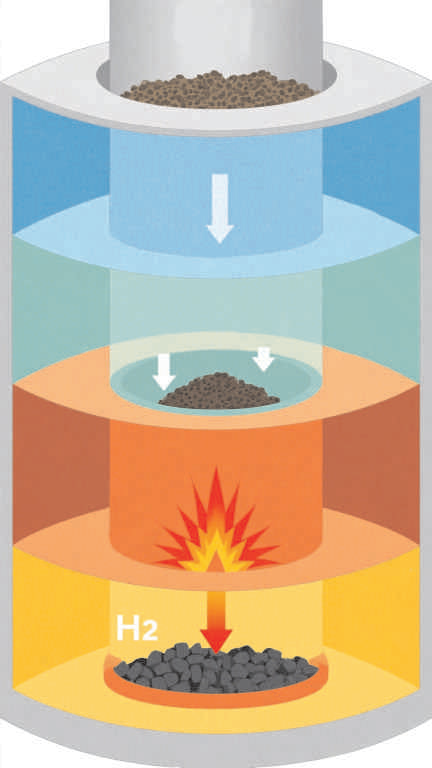

Working Principle of Biomass Gasification Furnace
The biomass pyrolysis gasification process in our down-suction gasifier has four interconnected stages (no clear boundaries between zones):
1. Drying Layer (200-300℃)
The top layer is the drying zone—the first step in biomass conversion to energy. Materials added from above exchange heat with hot gas from lower zones, evaporating moisture.
2. Pyrolytic Layer (500-600℃)
Dry biomass moves down to the pyrolytic layer, where heating triggers pyrolysis—the heart of biomass energy conversion. Most volatile components separate from solids by 500-600℃, leaving charcoal.
3. Oxide Layer (Up to 1000℃)
Charcoal from pyrolysis reacts vigorously with air, releasing heat for the biomass gasifier’s subsequent reactions. Oxygen-limited combustion produces carbon monoxide while releasing additional heat.
4. Reduction Layer (600-800℃)
No oxygen exists here—this is where key syngas production happens. Carbon dioxide from the oxide layer reacts with charcoal and steam to generate carbon monoxide (CO) and hydrogen (H₂), the main components of clean combustible gas.
Why Choose Our Biomass Gasification Furnace?
Our proprietary high-temperature biomass gasification process puts our engineering application research at the domestic forefront. We quickly turn R&D breakthroughs into real-world solutions, undertaking major pilot and industrial projects globally and setting technical standards for domestic industries.
We use biomass gasification polygeneration technology to eliminate tar and wood vinegar production, cutting secondary pollution and reducing equipment, accessory, and maintenance costs. By harnessing the sensible heat of hot gas, we boost gas calorific value—delivering far higher energy efficiency than traditional energy equipment.
Our equipment handles all common biomass feedstock (straw, wood chips, rice husks, palm shells, bagasse, agricultural/forestry waste)—a key advantage for waste-to-energy equipment versatility. It works with materials 30-50mm in particle size and ≤20% moisture content, solving the challenge of disposing diverse agricultural and forestry wastes.
With a decade of biomass gasification furnace manufacturing experience, we offer end-to-end services: design, production, installation, and commissioning. We also provide EMC energy management cooperation—custom energy-saving solutions where we share savings with customers for mutual benefit.
We stand by the philosophy: “Leading technology, reliable products, quality as life.” Our equipment features rational design, advanced technology, and top-tier quality—upholding industrial biomass equipment standards. Continuous innovation and improved management give us a clear competitive edge domestically and internationally.
Which Materials can be Processed?
Main Application Scenarios
1. Rural Distributed Biomass Gasification Co-production
We deliver integrated heat-electricity-gas solutions for rural areas: clean gas for cooking and heating via pipelines, rural biomass power generation with connected generators, and biochar for charcoal-based fertilizers and soil amendments.
2. Industrial Waste Gasification Cleaning Heating/Gas Supply
Alongside biomass syngas, it produces high-value biochar products: activated carbon, barbecue charcoal, mosquito-repellent incense charcoal, and capacitor carbon (with strong market potential)—adding extra revenue streams for customers.
3. Biomass Carbon-Gas Co-production
Alongside biomass syngas, it produces high-value biochar products: activated carbon, barbecue charcoal, mosquito-repellent incense charcoal, and capacitor carbon (with strong market potential)—adding extra revenue streams for customers.
4. Biomass Power Generation
Pair it with 500KW+ power generation units for grid-connected biomass power generation projects. Electricity can be sold to the grid or used on-site, while waste heat is recycled for heating—achieving cascade energy utilization.
Customer Site Footage
International Cooperation
Customers from Russia, Vietnam, Thailand, Uzbekistan, Nigeria, Senegal, and other countries have visited to inspect our bio-gasification furnace series. Our high-efficiency gas production, low-emission design, and full range of tonnage options drew strong interest. We reached multiple cooperation agreements after discussing international market needs and technical adaptations. Moving forward, we’ll deepen global partnerships to bring green energy technology to more regions.
Customer Application Cases
| Project Name | Model Specification | Construction Content | Project Location |
|---|---|---|---|
| Biomass Gasification Furnace Project | Φ3.6m | Complete set of equipment, supporting blue carbon drying | Yili, Xinjiang |
| Biomass Gasification Furnace Project | Φ1.5m | Complete set of equipment, supporting aluminum melting furnace | Hubei |
| Biomass Gasification Furnace Project | Φ2.0m | Complete set of equipment, supporting hot blast stove | Chengdu, Sichuan |
| Biomass Gasification Furnace Project | Φ2.4m | Gasification furnace matching 4-ton steam furnace | Hubei |
| Biomass Gasification Furnace Project | Φ2.4m | Gasification furnace supporting 500KW power generation unit, fluidized bed gasification furnace | Thailand |
FAQ Biomass Gasification Furnace
It works with all common biomass feedstock: straw, wood chips, rice husks, palm shells, bagasse, and agricultural/forestry waste. We recommend 30-50mm particle size and ≤15% moisture content. We can also adjust specifications for special raw materials.
Yes. Our eco-friendly biomass gasification technology eliminates tar and wood vinegar pollution. The gas purification system meets national air pollutant emission standards—no visible dust or odors during operation.
EMC (Energy Performance Contracting) replaces traditional energy with biomass gasification. We provide equipment, fuel, and on-site operation management. Cooperation terms range from 5-20 years, with shared energy-saving benefits for mutual success.
Our automated biomass gasifier needs just 1-2 operators for daily tasks: feeding, parameter monitoring, and routine checks. Most operators master the system in 1-2 days of professional training.
We offer custom biomass gasification system specifications tailored to your raw material type, output needs, and application context. The customization process takes 30-45 working days (design, production, commissioning) and includes post-delivery training.
We offer one-stop support: design, production, installation, commissioning, and training, plus a one-year warranty. We also provide long-term technical consultation and spare parts supply to keep your biomass gasifier running smoothly.
Buyer's Guide

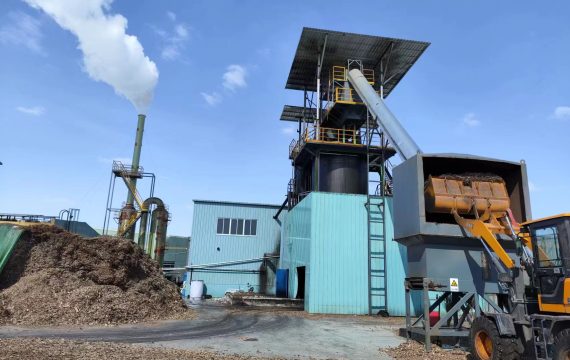

How to Choose the Best Biomass Gasification Furnace?
Define your gas production, heat output, or power generation needs based on your application (rural heating, industrial production, etc.). Choose the right biomass gasification furnace model to match your local biomass feedstock supply.
Focus on core metrics: gas production, calorific value, fuel consumption, and energy efficiency—key factors for selecting a high-performance biomass equipment.
Ensure the equipment has a full gas treatment system to meet local environmental standards. Check for safety features like over-temperature alarms and pressure relief devices.
Factor in long-term operating expenses: fuel, labor, and maintenance. Choose an easy-to-maintain biomass gasifier with replaceable wear parts to minimize costs.
Select manufacturers with proven experience in biomass energy equipment and national certifications (e.g., high-tech enterprise status). Check their successful cases and customer reviews to confirm reliability.
Clearly outline equipment specifications, performance guarantees, delivery timelines, after-sales service, and warranty terms to protect your investment.
Get Your Customized Biomass Gasification Furnace Solution
With 10 years of experience focusing on biomass high-temperature pyrolysis gasification technology, we specialize in designing Biomass Gasification Furnace systems for large-scale renewable energy operations. Whether you need to convert rice husk, sawdust, or crop straw into clean combustible gas, build a biomass energy project, or scale your biomass gasification business, we’ll tailor a system to your biomass feedstock type, gas production goals, and local environmental standards.
Contact us today to receive:
- A free biomass feedstock analysis and capacity calculation (please provide your monthly input and gas output targets).
- Watch a video of our Biomass Gasification Furnace processing your specific material (e.g., sawdust, coconut shells, crop straw) 24/7.
- Transparent pricing (no hidden fees—includes machine, installation, operator training, and a one-year warranty).
We don’t just sell Biomass Gasification Furnace equipment; we help you build a sustainable, profitable biomass gasification line. Let us help you achieve 24/7 reliable production for your energy supply or industrial heating needs!
