Automatic Palletizer
High-Efficiency Robotic Palletizer for Industrial Packaging Lines
Automatic Palletizer Overview
Our Automatic Palletizer (also known as Robotic Palletizer) is a core palletizing system designed for automated stacking of packaged goods. It replaces manual labor to stack bags, cartons, and boxes (filled with biomass pellets, feed, chemicals, or building materials) onto pallets with precision. Featuring a stacking speed of 10–60 packs/minute and positioning accuracy of ±2mm, it integrates seamlessly with packaging lines—ideal for large-scale production in biomass energy, food processing, chemical, and logistics sectors.
Technical Parameters of Automatic Palletizer
| Parameter | Specification Range | Applicable Scenarios |
|---|---|---|
| Stacking Speed | 10–60 packs/minute | Small: 10–25 packs/min; Medium: 30–45 packs/min; Large: 50–60 packs/min |
| Positioning Accuracy | ±2mm | All models |
| Applicable Packages | Bags (woven, plastic, paper): 5–50kg; Cartons/boxes: 10–30kg | Packaged granular/powder goods |
| Pallet Size | 800×1200mm, 1000×1200mm (customizable) | Standard industrial pallets |
| Stacking Height | 1200–2000mm (adjustable) | Based on warehouse storage needs |
| Power | 5–15 kW | Small: 5–8kW; Medium: 10–12kW; Large: 13–15kW |
| Machine Weight | 2000–8000 kg | Small: 2000–3500kg; Medium: 4000–6000kg; Large: 6500–8000kg |
| Control Mode | PLC automatic control + touch screen operation (optional IoT monitoring) | All variants |

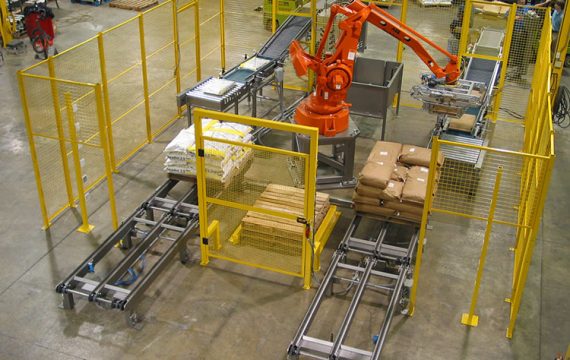

Core Components of Automatic Palletizer
High-rigidity robotic arm with 4–6 axes of movement, enabling flexible stacking of different package shapes (bags, cartons). Equipped with anti-slip grippers (rubber-lined) to avoid package damage, even for soft woven bags.
Automatic pallet storage rack (holds 10–20 pallets) + chain conveyor, realizing unattended pallet supply. The conveyor adjusts speed to match the robotic arm, ensuring smooth stacking workflow.
Photoelectric sensors + centering mechanism correct package position before stacking, ensuring uniform alignment and stable pallet loads (no collapsing during storage/transport).
Safety light curtains + emergency stop buttons form a protective zone around the machine. It pauses immediately if operators enter the area, complying with global industrial safety standards (ISO 10218).

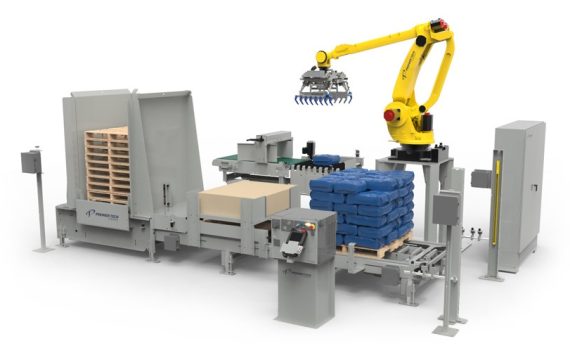

Working Principle of Automatic Palletizer
The Automatic Palletizer integrates with packaging lines to complete automated stacking in 5 streamlined steps:
- Package Infeed: Packaged goods (from bagging/carton machines) are conveyed to the positioning device, which corrects offset and aligns them uniformly.
- Pallet Supply: The storage rack feeds empty pallets to the stacking station via the conveyor, positioning them accurately.
- Pattern Selection: Operators select pre-set stacking patterns (e.g., staggered for bags) via the touch screen, or the system auto-matches based on package type.
- Robotic Stacking: The robotic arm grips packages with adjustable force, moves to the pallet, and stacks them layer by layer according to the set pattern—positioning accuracy within ±2mm.
- Finished Pallet Output: Once stacking reaches the target height (1200–2000mm), the conveyor transports the finished pallet to the next process (stretching wrapping, warehouse storage).
Core Advantages and Features
Why choose our automatic palletizer?
Stacking speed of 10–60 packs/minute replaces 3–6 manual workers, cutting labor costs by $40,000–$80,000 annually. A 30 packs/min model handles 14,400 packs/day (8 hours), 3x faster than manual stacking.
Robotic precision ensures uniform, stable pallet loads—collapsing rate <0.1%, reducing product damage during storage and transportation.
Seamlessly connects with bagging machines, carton sealers, and stretch wrappers, forming a fully automated packaging-stacking line—reducing manual intervention by 90%.
Industrial-grade robotic arm and components support 24/7 continuous operation. Routine maintenance (lubrication, sensor calibration) takes 15–20 minutes daily, with a service life of 10–15 years.
Neat stacks fit more pallets. A Shanghai logistics warehouse used to fit 50 pallets in 100㎡; now with our tight stacks, they fit 70 (40% more storage). No need to rent extra space .
Main Application Scenarios
1. Biomass Energy Industry
Stacks 15–25kg biomass pellet bags onto pallets for export or industrial use—ensuring neat, stable loads for container shipping.
2. Feed Processing
Automatically stacks 10–20kg feed bags, integrating with post-packaging lines to improve production efficiency.
3. Chemical Industry
Stacks sealed chemical powder/carton packages, avoiding manual contact with corrosive or toxic materials—enhancing workplace safety.
4. Logistics & Food Processing
Stacks cartons of food, beverages, or consumer goods, preparing them for warehouse storage and distribution.
Customer Site Footage
Automatic Palletizer Application Cases
Thai Feed Factory:
Used a 25 packs/min model to integrate with its packaging line. The customizable stacking patterns adapted to both 10kg and 15kg feed bags, improving line efficiency by 25%.
Chinese Biomass Pellet Plant
Adopted a 45 packs/min IoT-connected robotic palletizer to stack chemical cartons. Real-time monitoring and safety protection met EU standards, and remote troubleshooting reduced downtime by 30%.
German Chemical Company
Adopted a 45 packs/min IoT-connected robotic palletizer to stack chemical cartons. Real-time monitoring and safety protection met EU standards, and remote troubleshooting reduced downtime by 30%.
FAQ for Automatic Palletizer
Depending on the load (25 kg bags/1 kg cartons/1 ton big bags), the speed range is 15-1600 pieces/hour. Bag-type machines typically reach 800-1600 pieces/hour, while heavy-duty big bag models can reach 15-40 pieces/hour.
Yes, this is possible by replacing the grippers: a bag gripper, a food-grade suction cup for cartons, and an anti-static pneumatic fork for heavy-duty big bags. Special specifications can be customized.
One person can operate one or two machines (including starting, stopping, and replenishing). Traditional manual palletizing requires 3-4 people, saving 2-3 people per month per production line in labor costs.
No significant downtime is required. On-site commissioning is the primary focus. Small models can be completed in 1-2 days, while heavy-duty, large-bag models (including conveyors) require 3-5 days.
Training is simple, primarily covering starting, stopping, gripper switching, and troubleshooting. It can be independently operated within 1-2 days, and we provide remote guidance to facilitate subsequent problem resolution.
A single robot consumes approximately 5-10 kWh of electricity per hour, averaging several hundred yuan per month. Taking into account labor, breakage, and efficiency losses, operating costs are 30%-50% lower than manual labor.
Choose an ATEX-certified model equipped with anti-static pneumatic grippers and a static-dissipative conveyor to eliminate static electricity buildup. This will pass explosion-proof certification in the EU/China.
Yes, it can be integrated with mainstream packaging machines/conveyors. Please confirm the device interface (signal/size) in advance and then connect it through on-site debugging.
Buyer's Guide
How to choose the right automatic palletizer？
Calculate your packaging line’s hourly output and select a palletizer with 10–20% higher speed to avoid bottlenecks.
Inform the manufacturer of package type (bag/carton), weight, and dimensions—ensure the gripper and stacking mechanism are suitable.
Choose models with positioning accuracy ≤±2mm and stable stacking (collapsing rate <0.1%) to reduce product damage.
Small lines can use basic PLC models; large smart factories should opt for IoT-connected models (remote monitoring, data logs). Ensure compliance with local safety standards.
Select manufacturers with on-site installation, training, and global spare parts delivery (7–15 days). A 1–2 year warranty for the robotic arm is recommended.
Measure your workshop space—compact models (3.0×2.5×3.5m) suit small workshops, while high-speed models need more operating space.
Get Your Customized Automatic Palletizer Solution
We’re not just selling machines — we’re fixing your production headaches. As Automatic Palletizer Manufacturers, we build equipment for your factory: whether you need a compact Robotic Palletizer for a small snack shop or a high-capacity Full-Automatic Palletizing System for a large feed plant, we’ll tailor it to your product, capacity, and space.
Contact us today to get:
- Free capacity calculation (tell us your line speed — we’ll figure out the right model).
- Videos of our palletizers running in factories like yours (no fake demos).
- A clear quote (no hidden fees — we include installation and training).
We’ve helped 300+ factories cut costs, reduce waste, and make workers’ lives easier — let’s help you next!
